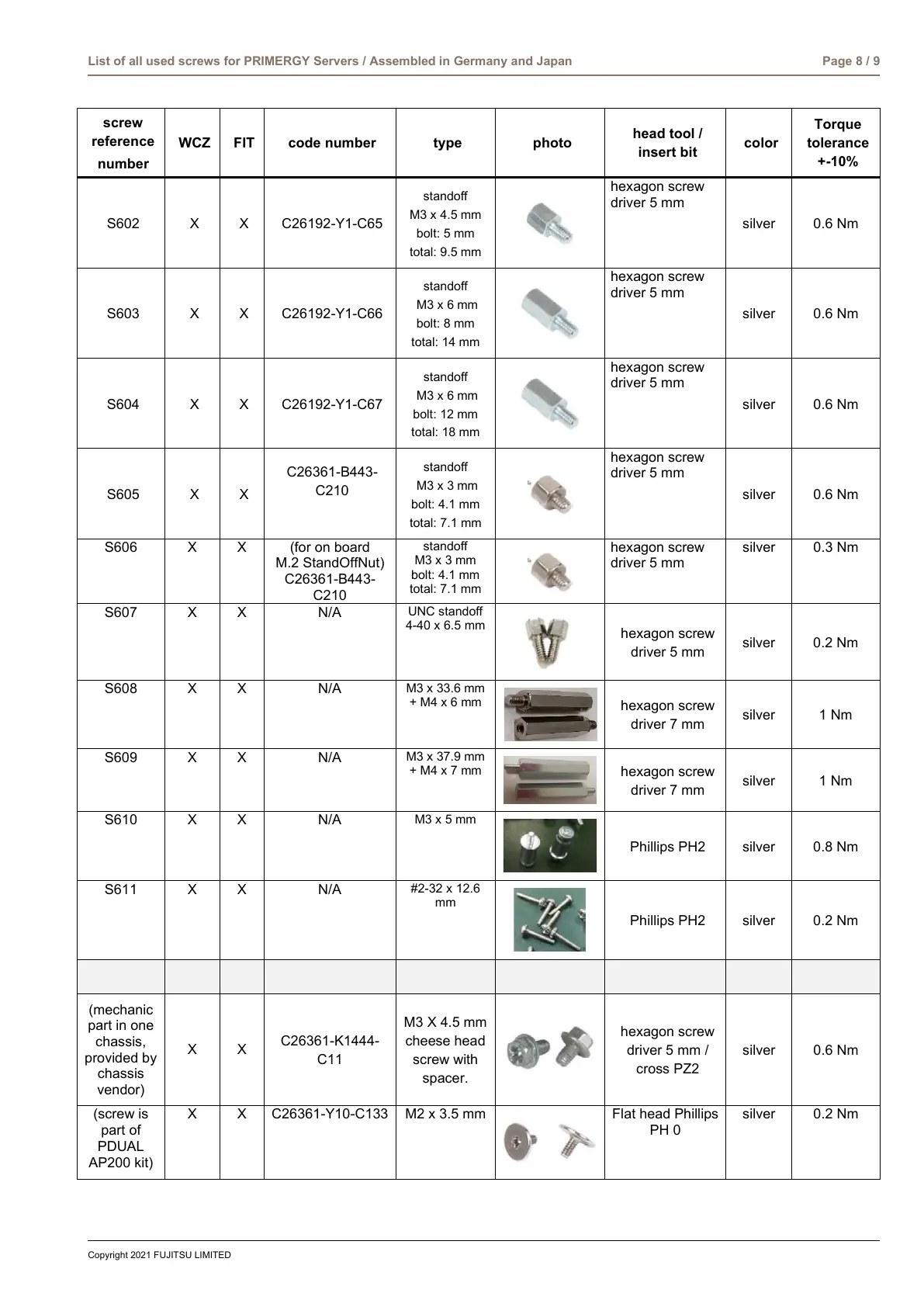

List of all used screws for PRIMERGY Servers / Assembled in Germany and Japan Page 8 / 9
screw
reference
number
WCZ
FIT
code number
type
head tool /
insert bit
color
Torque
tolerance
+-10%
S602
X
X
C26192-Y1-C65
standoff
M3 x 4.5 mm
bolt: 5 mm
total: 9.5 mm
hexagon screw
driver 5 mm
silver
0.6 Nm
S603
X
X
C26192-Y1-C66
standoff
M3 x 6 mm
bolt: 8 mm
total: 14 mm
hexagon screw
driver 5 mm
silver
0.6 Nm
S604
X
X
C26192-Y1-C67
standoff
M3 x 6 mm
bolt: 12 mm
total: 18 mm
hexagon screw
driver 5 mm
silver
0.6 Nm
S605
X
X
C26361-B443-
C210
standoff
M3 x 3 mm
bolt: 4.1 mm
total: 7.1 mm
hexagon screw
driver 5 mm
silver
0.6 Nm
S606
X
X
(for on board
M.2 StandOffNut)
C26361-B443-
C210
standoff
M3 x 3 mm
bolt: 4.1 mm
total: 7.1 mm
hexagon screw
driver 5 mm
silver
0.3 Nm
S607
X
X
N/A
UNC standoff
4-40 x 6.5 mm
hexagon screw
driver 5 mm
silver
0.2 Nm
S608
X
X
N/A
M3 x 33.6 mm
+ M4 x 6 mm
hexagon screw
driver 7 mm
silver
1 Nm
S609
X
X
N/A
M3 x 37.9 mm
+ M4 x 7 mm
hexagon screw
driver 7 mm
silver
1 Nm
S610
X
X
N/A
M3 x 5 mm
Phillips PH2
silver
0.8 Nm
S611
X
X
N/A
#2-32 x 12.6
mm
Phillips PH2
silver
0.2 Nm
(mechanic
part in one
chassis,
provided by
chassis
vendor)
X
X
C26361-K1444-
C11
M3 X 4.5 mm
cheese head
screw with
spacer.
hexagon screw
driver 5 mm /
cross PZ2
silver
0.6 Nm
(screw is
part of
PDUAL
AP200 kit)
X
X
C26361-Y10-C133
M2 x 3.5 mm
Flat head Phillips
PH 0
silver
0.2 Nm
