Garmin GPSMAP 695/696 Owner’s Manual
190-00919-00 Rev. G
Appendix D
211
Overview GPS Navigation Flight Planning Hazard Avoidance Additional Features Appendices Index

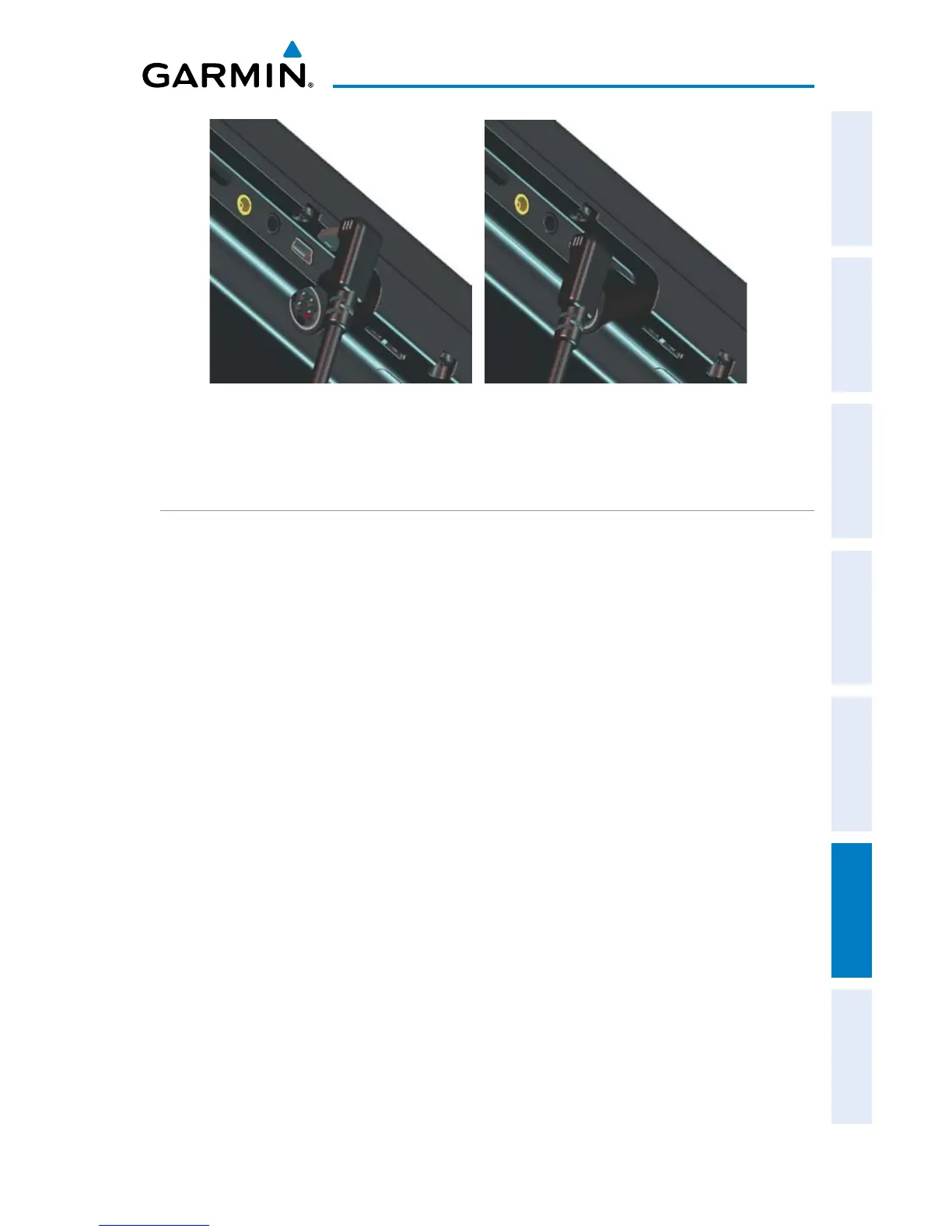

GXM 40 Antenna
INTERFACING
The following formats are supported for connection of external devices: NMEA 0180,
0182, 0183 (versions 1.5, 2.0, 2.3, 3.01), ASCII Text Output, and Garmin proprietary
formats for connecting to a Mode S transponder for TIS-A data, and to a Garmin
aviation NAV/COM radio.
The following are the Approved Sentences for NMEA 0183, version 3.01 output:
GPRMC, GPGGA, GPGSA, GPGSV, GPGLL, GPBOD, GPRTE, and GPWPL. The following
are the Proprietary Sentences for NMEA 0183, version 3.01 output: PGRME, PGRMZ,
PGRMM, and PGRMH.
The GPSMAP 695/696 also includes NMEA input with support for the BWC, DBT,
DPT, MTW, VHW, VTG, and XTE sentences.
Garmin’s proprietary communication protocol is available from the Web site (www.
garmin.com).
GENERAL INTERFACE SETUP
The Interface Setup controls the input/output format used when connecting the unit
to external devices.
Selecting an interface:
1)
Press the MENU Key twice to select the Main Menu.
2)
Turn or move the FMS Joystick to select ‘System Setup’, and press the ENT
Key.
