186 232003110G (03)

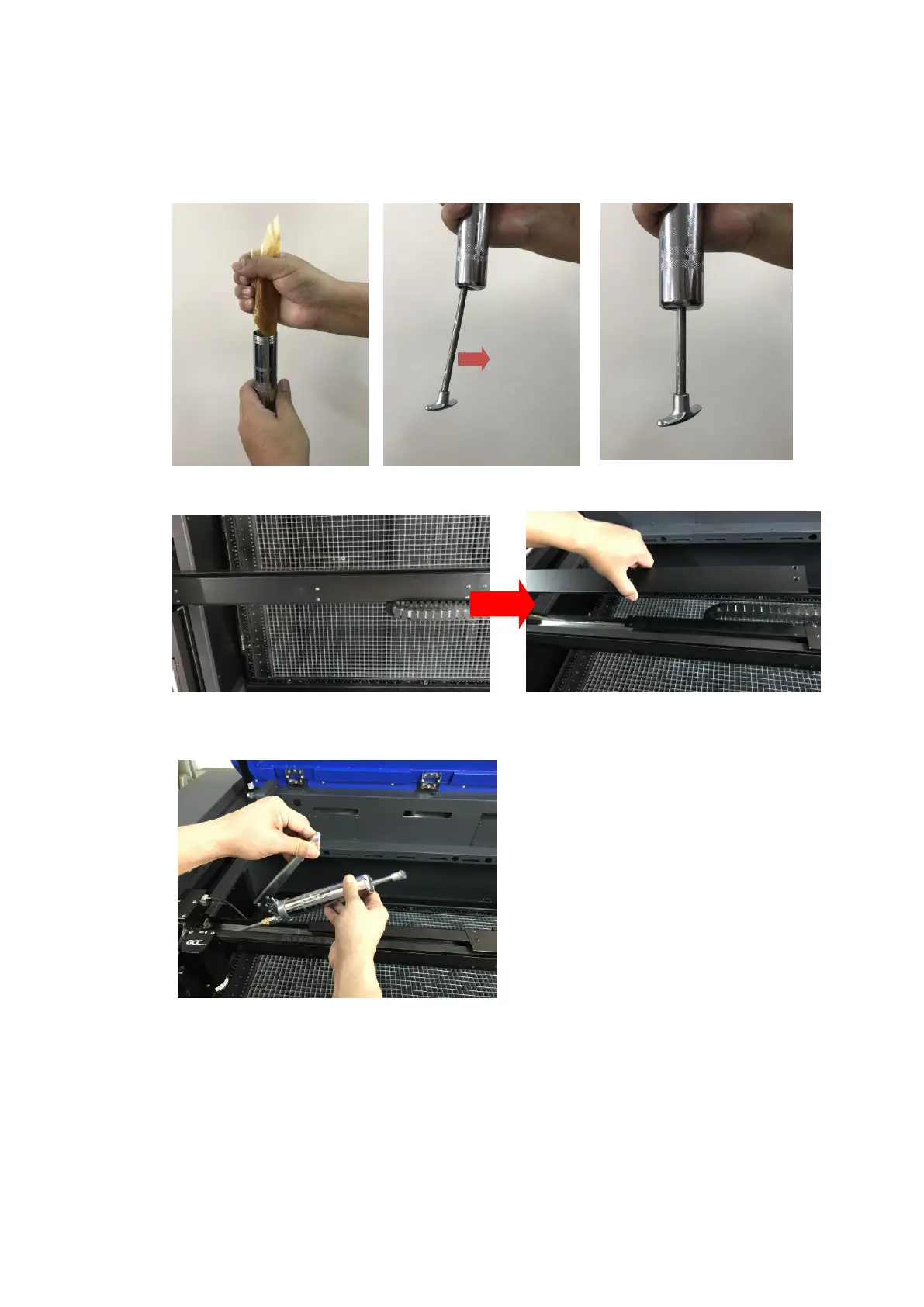

3. Inject 0.1ml of grease to the injection opening inside the linear bearing
4. Remove the protected cover from the carriage
5. Inject small amount of grease to this injection opening inside the linear bearing
6. Seal the lubrication slot plate back to the X rail
