10-6 ALPS Advanced Line Protection System
GE Power Management
10.2 TEST CALCULATIONS 10 ALPS TEST PROGRAM
10

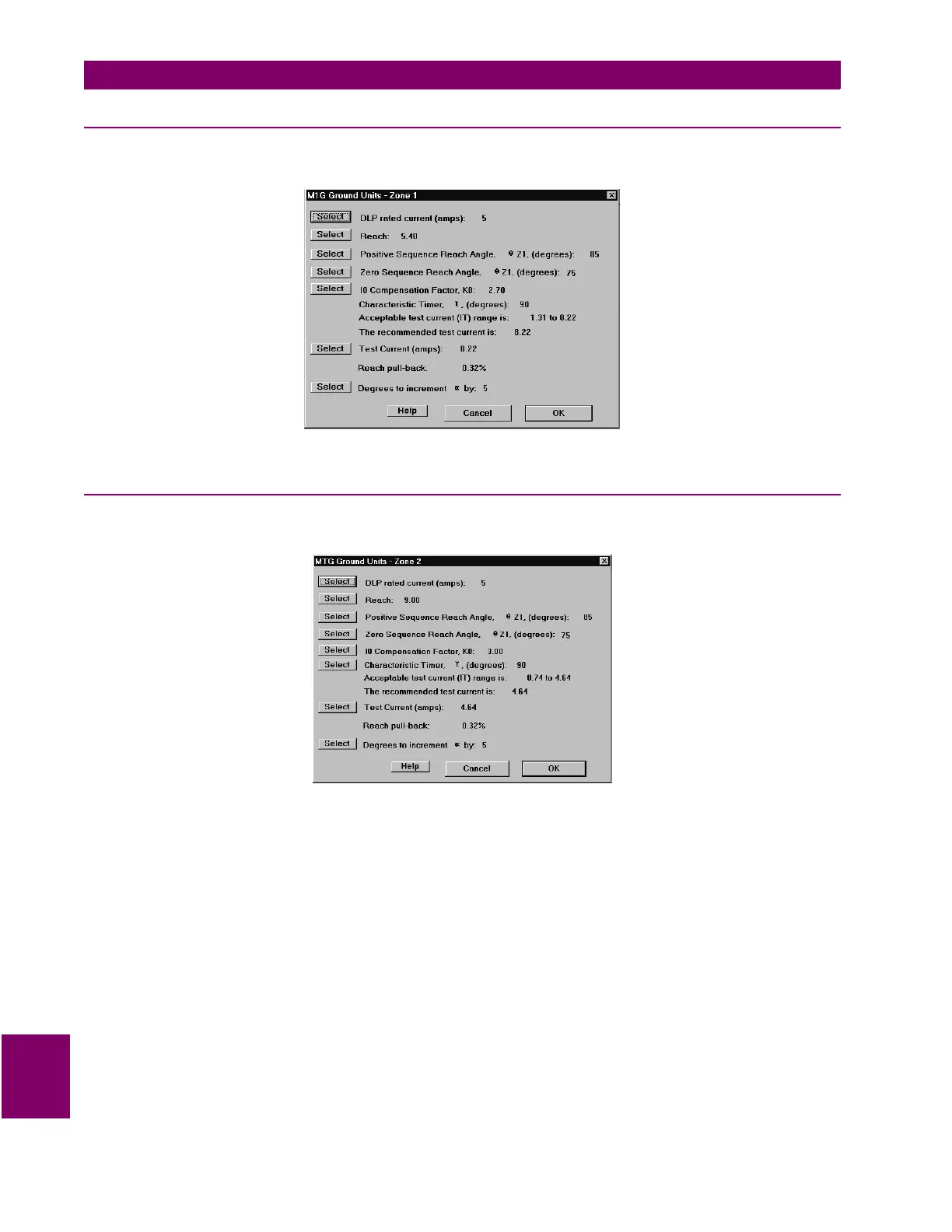

10.2.10 MIG GROUND UNITS – ZONE 1
The following dialog box is displayed for this test. The values are the default values used when the user selects New Test
File from the File menu.
Figure 10–10: M1G GROUND UNITS – ZONE 2 DIALOG BOX
10.2.11 MTG GROUND UNITS – ZONE 2
The following dialog box is displayed for this test. The values are the default values used when the user selects New Test
File from the File menu.
Figure 10–11: MTG GROUND UNITS – ZONE 2 DIALOG BOX
