D.1.2 ACT KEYPAD MENU

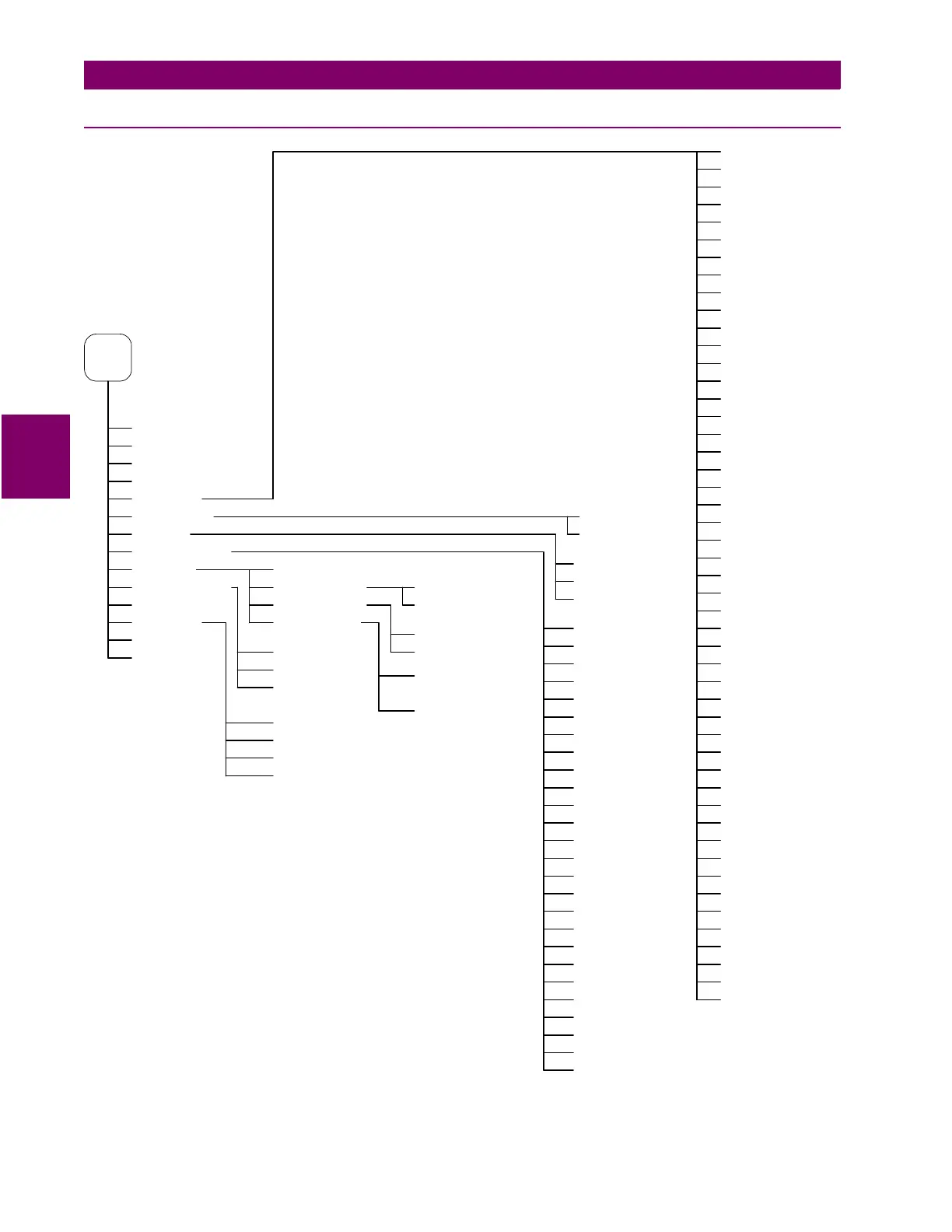

Figure D–2: ACT KEYPAD MENU
ACT
1. Disable Outputs
4. Close Breaker
3. Trip Breaker
2. Enable Outputs
14. Adjust Contrast
13. Reset Recloser
12. Reset Data
11. En/Dis Password
10. Change Password
9. Playback
8. Digital Output Test
7. LUI Test
6. Channel Test
5. Relay Test
1. END
4. DATA IN RELAY
3. UPLOADED DATA
2. FACTORY TEST
4. EQUIPMENT DUTY
3. OST OSC
2. EVENTS
1. FAULTS
3. MASTER
2. CONTROL
1. SETTING
1. CURRENT SETTING
2. FAULT SETTING
2. FAULT–SELECT
SETS FAULT #
1. CURR–SELECT
SETS FAULT #
2. FAULT SETTING
1. CURRENT SETTING
3. KEYPAD
2. LED
1. DISPLAY
1. End Channel Test
2. Channel Test
1. End Test Mode
25. KT4
26. CA-A/B
24. KT3
23. KT2
21. C2A/C2B
22. KT1
20. C1A/C1B
19. A12 †
18. A11 †
17. A10 †
16. A9 †
15. A8
14. A7
13. A6
12. A5
11. A4
10. A3
† ALPS with Single Phase Tripping only
8. A1
7. T6 †
6. T5 †
5. T4
4. T3
3. T2
2. T1
1. End Test Mode
11. Zone 4 AG
10. Zone 3 CG
9. Zone 3 BG
8. Zone 3 AG
7. Zone 2 CG
6. Zone 2 BG
5. Zone 2 AG
4. Zone 1 CG
3. Zone 1 BG
2. Zone 1 AG
21. Zone 2 AB
20. Zone 1 CA
19. Zone 1 BC
18. Zone 1 AB
17. Any Z4 GND
16. Any Z3 GND
15. Any Z2 GND
14. Any Z1 GND
13. Zone 4 CG
12. Zone 4 BG
33. Any Z4 Phase
32. Any Z3 Phase
31. Any Z2 Phase
30. Any Z1 Phase
29. Zone 4 CA
28. Zone 4 BC
27. Zone 4 AB
26. Zone 3 CA
25. Zone 3 BC
24. Zone 3 AB
23. Zone 2 CA
22. Zone 2 BC
43. Inst Phase Overload
42. Line Overload
41. V1 Detector
40. Out of Step Blk
39. Ren Op Detector
38. Fault Detector
37. GND Dir Block
36. GND Dir Trip
35. IB Detector
34. IT Detector
48. Undervoltage
49. Out of Step Trip
46. Line Pickup
47. Overvoltage
45. GND TOC Pickup
44. Inst GND Overload
9. A2
