10-8 ALPS Advanced Line Protection System
GE Power Management
10.3 FILE MENU 10 ALPS TEST PROGRAM
10
10.3 FILE MENU 10.3.1 NEW TEST FILE
The File menu is shown below:

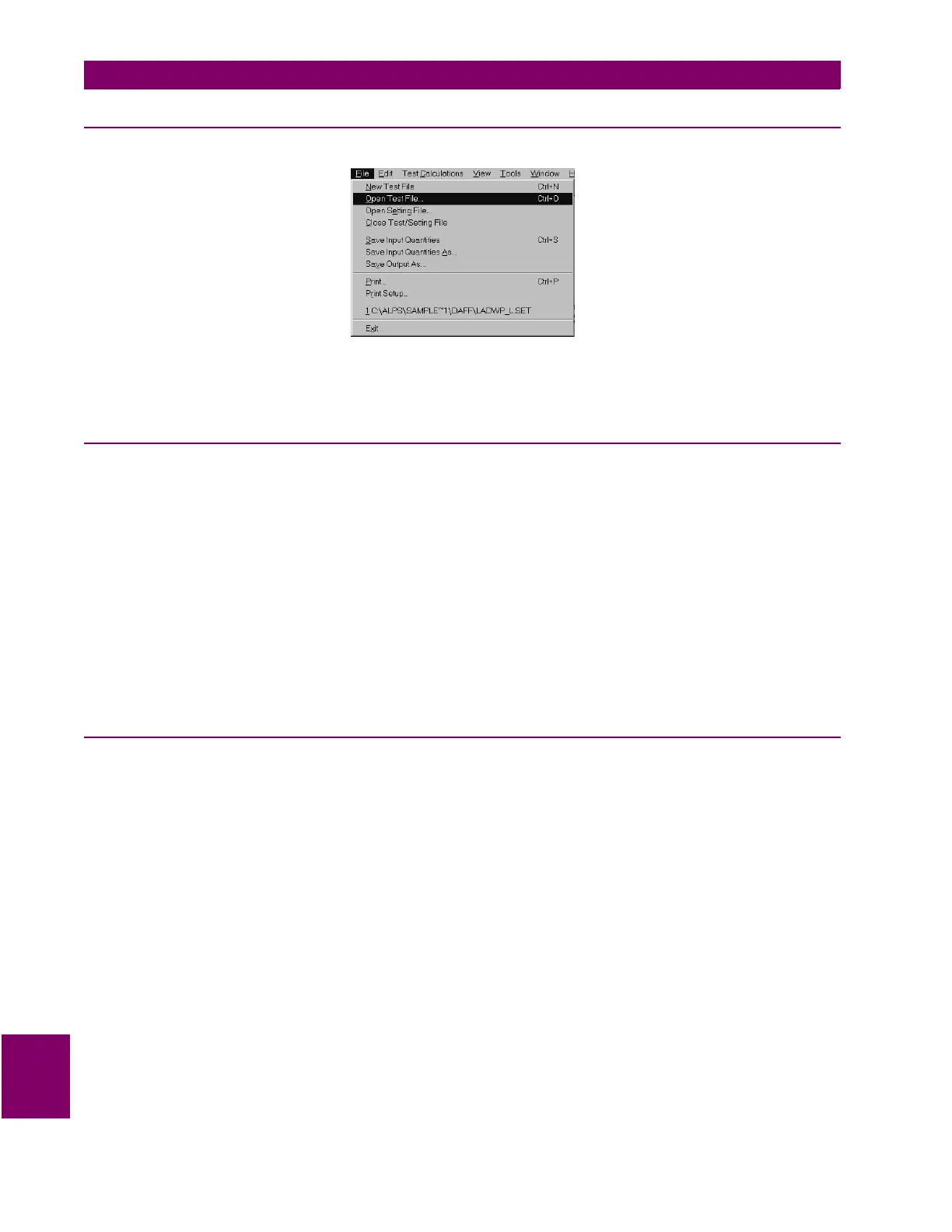

Figure 10–13: FILE MENU
Select New Test File from the File menu. This will create a new test which is indicated by the GE logo being displayed and
the test name “Untitledx” in the title bar. The ‘x’ is a digit corresponding to the number of new documents created.
10.3.2 OPEN TEST FILE
This menu item results in a dialog box supplied by Microsoft. Therefore only the OK button of the dialog box is tested to
make sure the file was properly opened.
Select Open Test File from the File menu. Select a file that is not a test file and not a setting file. A message box is dis-
played that explains the error. Verify that the currently active test has not changed from before the open command.
Edit an existing test file using a text editor. Add a line to the file. Select Open Test File from the File menu. Select the
edited file. A message box is displayed that explains the error. Verify that the currently active test has not changed from
before the open command.
Edit an existing test file using a text editor. Remove a line which contains a user entered value that is not a default value.
Select Open test File from the File menu. Select the edited file. A message box is displayed explaining the error. Verify
that the test file is still loaded and that the missing value has its default value.
Select Open Test File from the File menu. Select a test file containing no errors and click the OK button to open it. Select
a test. Verify that the values in the dialog box are the same as those in the file (see the Save Input Quantities section).
10.3.3 OPEN SETTING FILE
The following is a list of protection setting numbers whose values are used by this test program.
102 Z1PREACH Z1 Phase Reach
105 Z1GRDREACH Z1 Ground Reach
108 Z1GROUNDK0 Z1 Ground K0
202 Z2PHREACH Z2 Phase Reach
203 Z2PCHARANG Z2 Phase Characteristic Angle
206 Z2GRDREACH Z2 Ground Reach
207 Z2GCHARANG Z2 Ground Characteristic Angle
302 Z3PHREACH Z3 Phase Reach
303 Z3PCHARANG Z3 Phase Characteristic Angle
305 Z3GRDREACH Z3 Ground Reach
306 Z3GCHARANG Z3 Ground Characteristic Angle
402 Z4PHREACH Z4 Phase Reach
403 Z4PCHARANG Z4 Phase Characteristic Angle
406 Z4GRDREACH Z4 Ground Reach
407 Z4GCHARANG Z4 Ground Characteristic Angle
408 Z4DIRECTN Z4 Direction
