Field replaceable units: Remove or replace handle assembly
7-16 Dash 3000/4000/5000 2000966-542D
CAUTION
Do not pull on the 802.11a/b/g antennas or use force
when connecting to the wireless card. Handle the
antennas and connectors carefully as they can easily be
damaged.

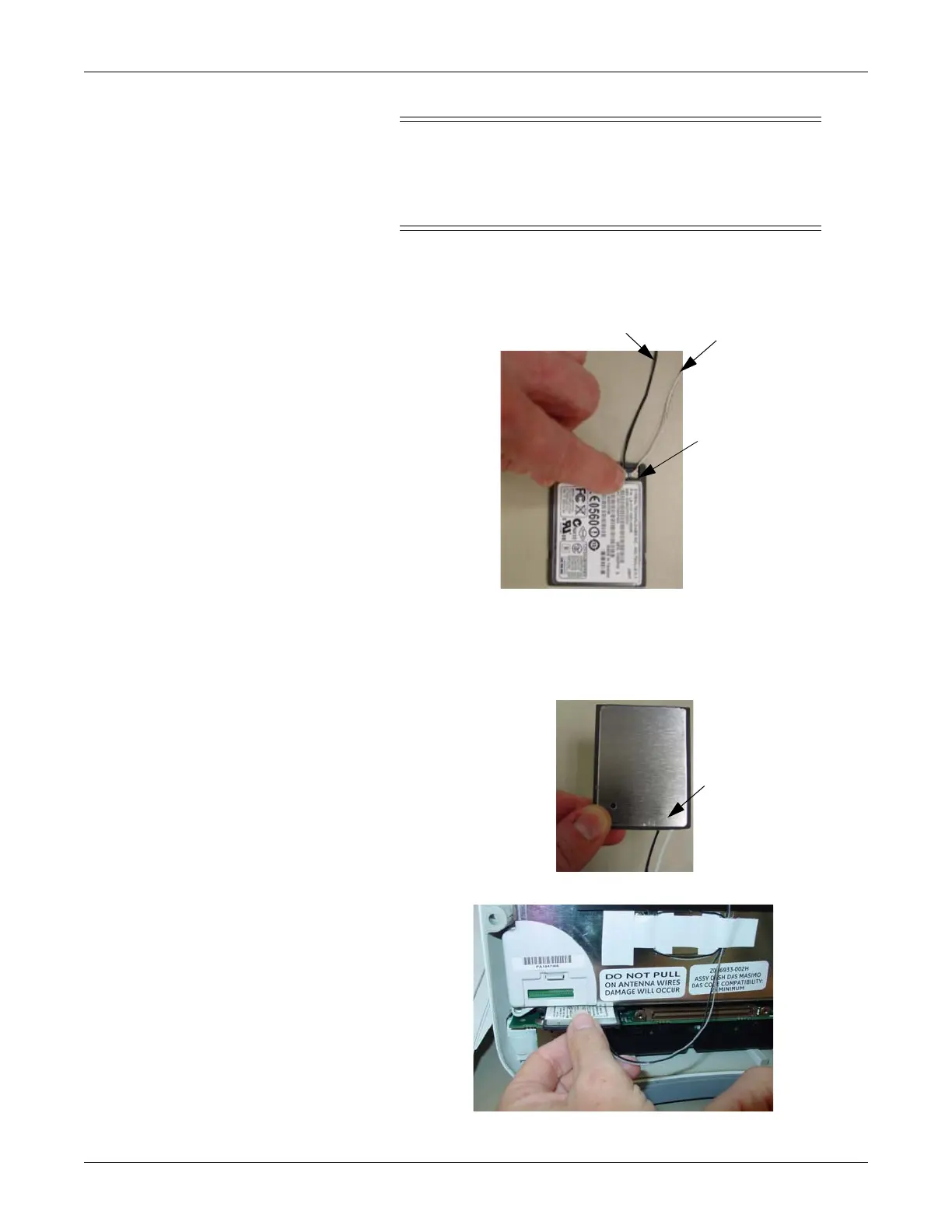

l. Connect the antenna cables to the wireless card (black cable to
the left and grey cable to the right).
m. Insert the wireless card (with the antenna connectors facing
down and the connected antenna cables on the righthand side)
into the PC card bracket.
Black antenna cable (left)
Grey antenna cable
(right)
Antenna connectors
959C
975B, 960C
Insert
wireless card
with antenna
connectors
facing down
