Equipment overview: Components
2-2 Dash 3000/4000/5000 2000966-542D
Components
Monitoring system
The Dash patient monitor can function as a portable monitoring device
with a built-in writer, or as a flexible care monitoring device connected to
the optional CARESCAPE™ Network via Ethernet. If using the wireless
card or Ethernet connection, optional components are a Clinical
Information Center (CIC Pro™) and a Centralscope™ central station.
NOTE
The Unity Network™ has been renamed to the CARESCAPE
Network. Not all references to the Unity Network will be changed
immediately; Unity may appear in some places and CARESCAPE in
others. It is important to understand that while the CARESCAPE
Network replaces the Unity Network name, they refer to the same
GE monitoring network.
 The CARESCAPE Network MC will be referred to as the MC
network throughout this document.
 The CARESCAPE Network IX will be referred to as the IX
network throughout this document.
Patient monitor
This device is designed to monitor a fixed set of parameters including
ECG, noninvasive blood pressure, impedance respiration, SpO2, and
temperature. Invasive pressure, BISx, and EtCO2 are optional features.
Additional specialized features include cardiac output, cardiac
calculations, pulmonary calculations, dose calculations, PA wedge (PA
wedge is only available with the invasive pressure option), ICG module
interface, and SAM™ module interface.
NOTE
For compatibility information, contact Technical Support.
Trim Knob
NBP Go/Stop
Zero All
Silence Alarm/
Admit
Graph
Power
Charging Status
A
B
AC Battery

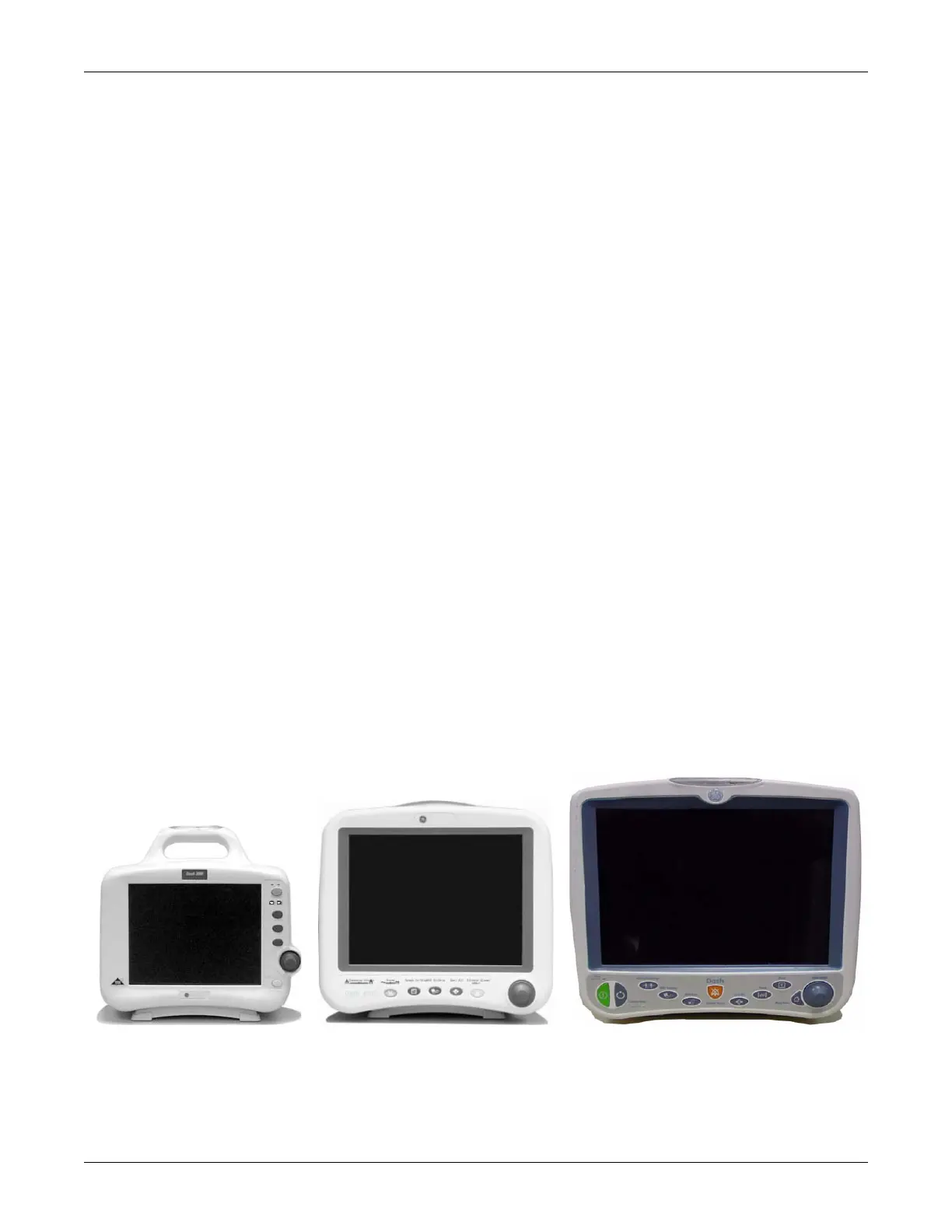

Dash 4000 monitorDash 3000 monitor
001C 051D 003A
Dash 5000 monitor
