Field replaceable units: Remove or replace display assembly
2000966-542D Dash 3000/4000/5000 7-23
a. To enable the alarm light option:
 Verify the alarm light jumper is connected to both jumper
pins on the alarm light PCB of the display you are replacing.
 Snap in the clear lens.
b. To disable the alarm light option:
 Remove the jumper from the alarm light PCB, or connect the
jumper to only one of the jumper pins on the alarm light
PCB.
 Pop in the opaque lens.
13. Connect the display assembly to the main unit. Refer to page 7-18
and re-assemble the patient monitor in reverse order.

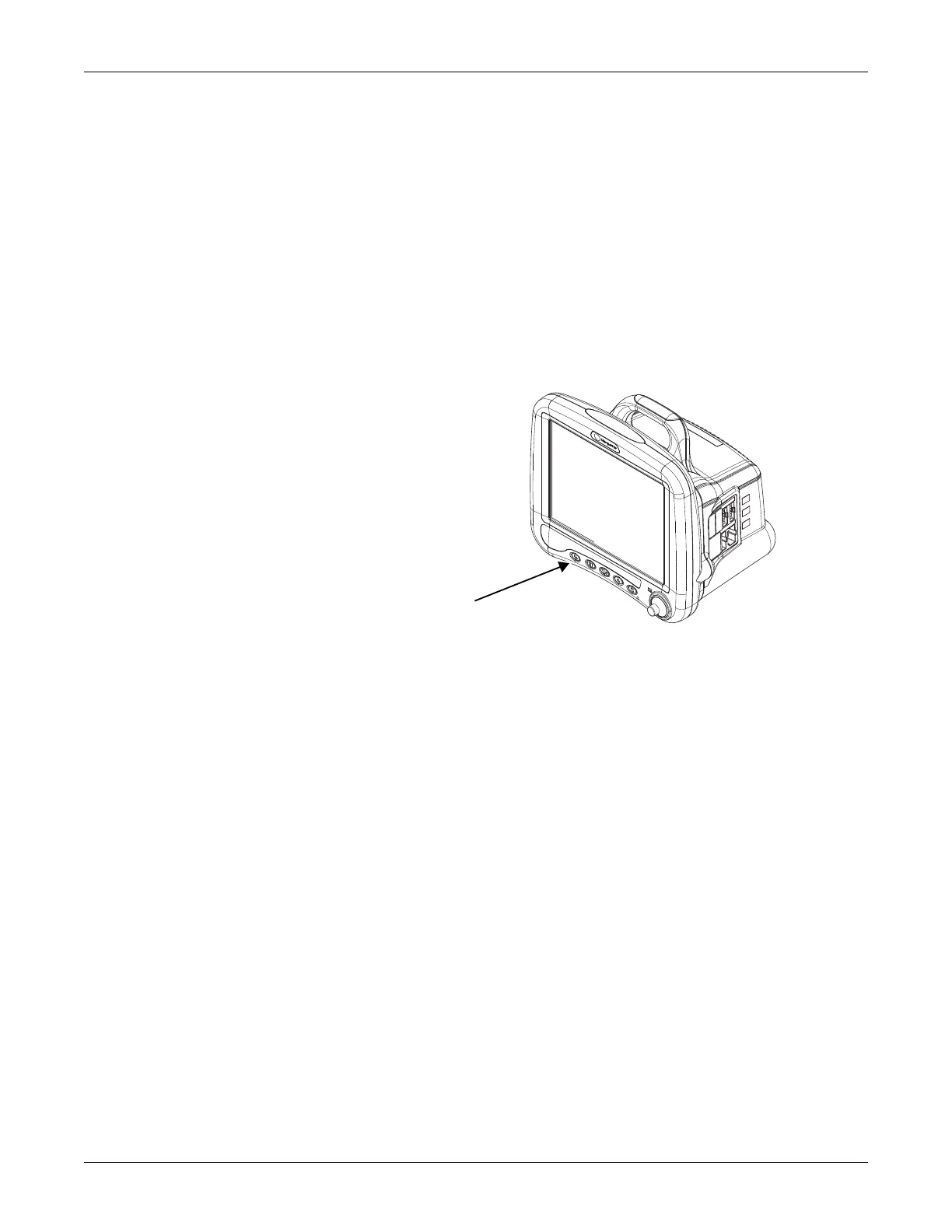

14. Apply the Dash front panel label as shown below.
15. Complete the procedures in “Recommended checkout” on page 7-52.
894A
Front panel label
