4 The Main Menu
125

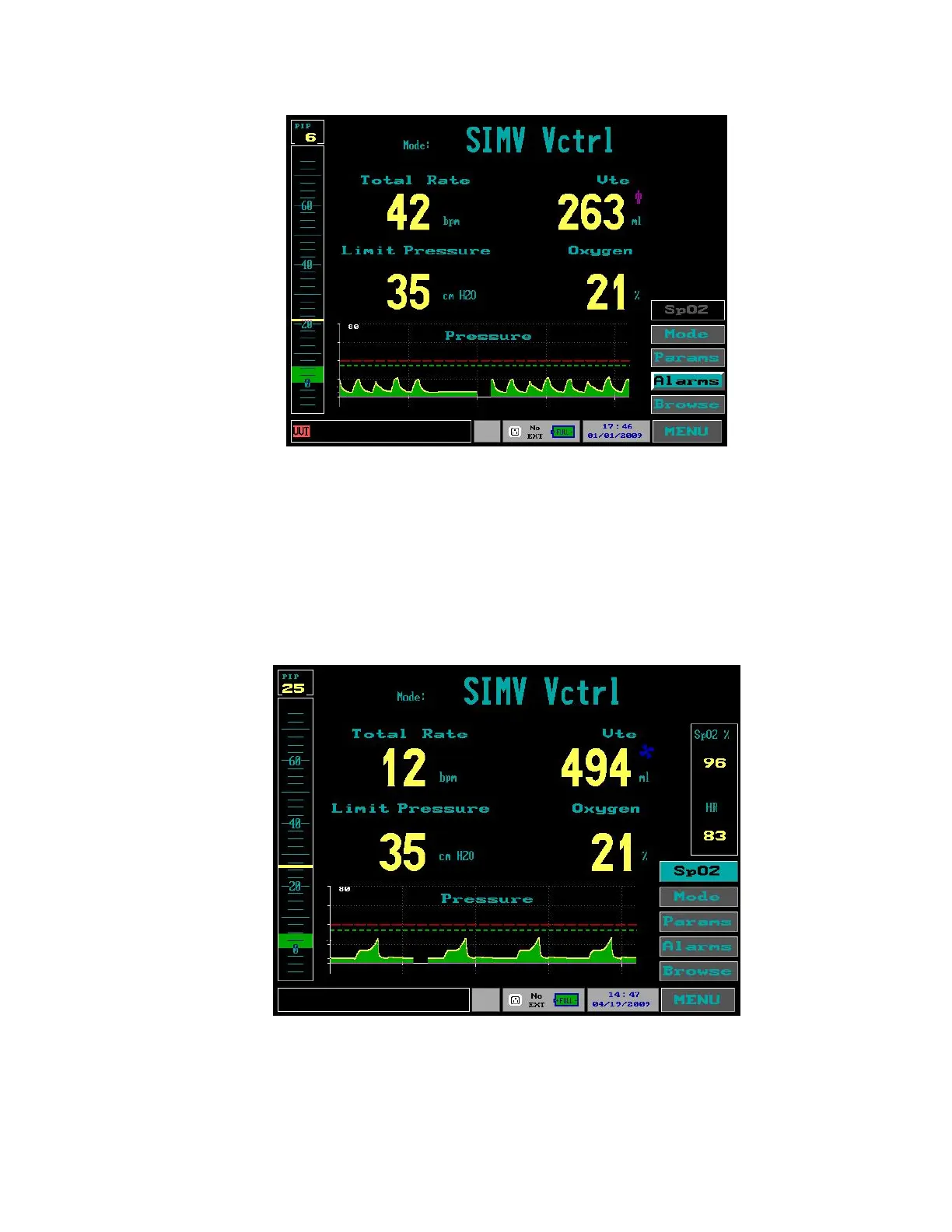

Figure 122: The Monitoring Display
The Monitoring display (Figure 122) is designed for optimal readability, and
shows yellow letters over a black screen with yellow numerals showing key
ventilation parameters.
The Pulse SpO2 pop-up window can be viewed on the Monitor display.
To display the SpO2 pop-up window on the monitoring screens select and press
the SPO2 option on the lower left side of the screen.
The SpO2 pop-up window appears on right side of the screen (Figure 123).
Figure 123: The Pulse Oximetry Pop-Up Window in the Monitor Display
The Home Care display only shows the essential data.
