4-24 L90 LINE CURRENT DIFFERENTIAL SYSTEM – INSTRUCTION MANUAL
FRONT PANEL INTERFACE CHAPTER 4: INTERFACES
4

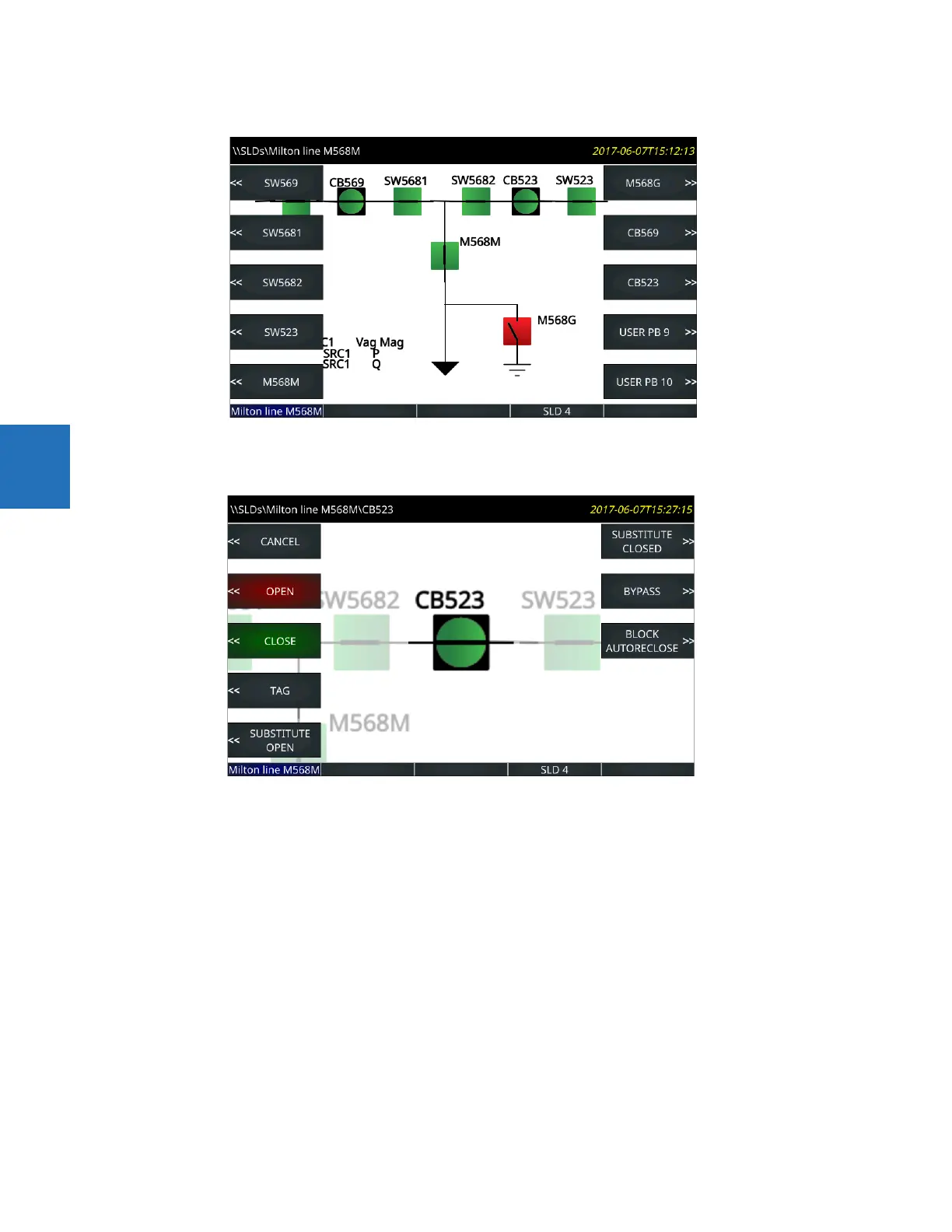

Figure 4-28: Side pushbutton display on graphical front panel
Press the CB523 breaker pushbutton. Its menu displays.
Figure 4-29: Pushbuttons to control the breaker
Press the pushbutton to close the breaker, confirming the action at the prompt.
Note the USER PB 9 and 10 entries in the preceding figure. As outlined later, these are activated by clicking the PB icon on
the software toolbar. These two pushbuttons can be configured under Settings > Product Setup > User-Programmable
Pushbuttons.
Single-line diagram editor use
Start the application in the EnerVista software under Settings > Product Setup > Graphical Panel > Single Line Diagram
Editor.
The following buttons display at the top of the window:
• Save — Updates the connected device if online or the open setting file if offline with any changes made on any page
• Restore — Undoes any changes on any page that have been made that have not been saved
• Load — Opens single-line diagram files, which replaces all five windows with that in the file
To save drawings as a separate file, click File > Save As. The file is saved in the .mif format.
