5-224 L90 LINE CURRENT DIFFERENTIAL SYSTEM – INSTRUCTION MANUAL
GROUPED ELEMENTS CHAPTER 5: SETTINGS
5

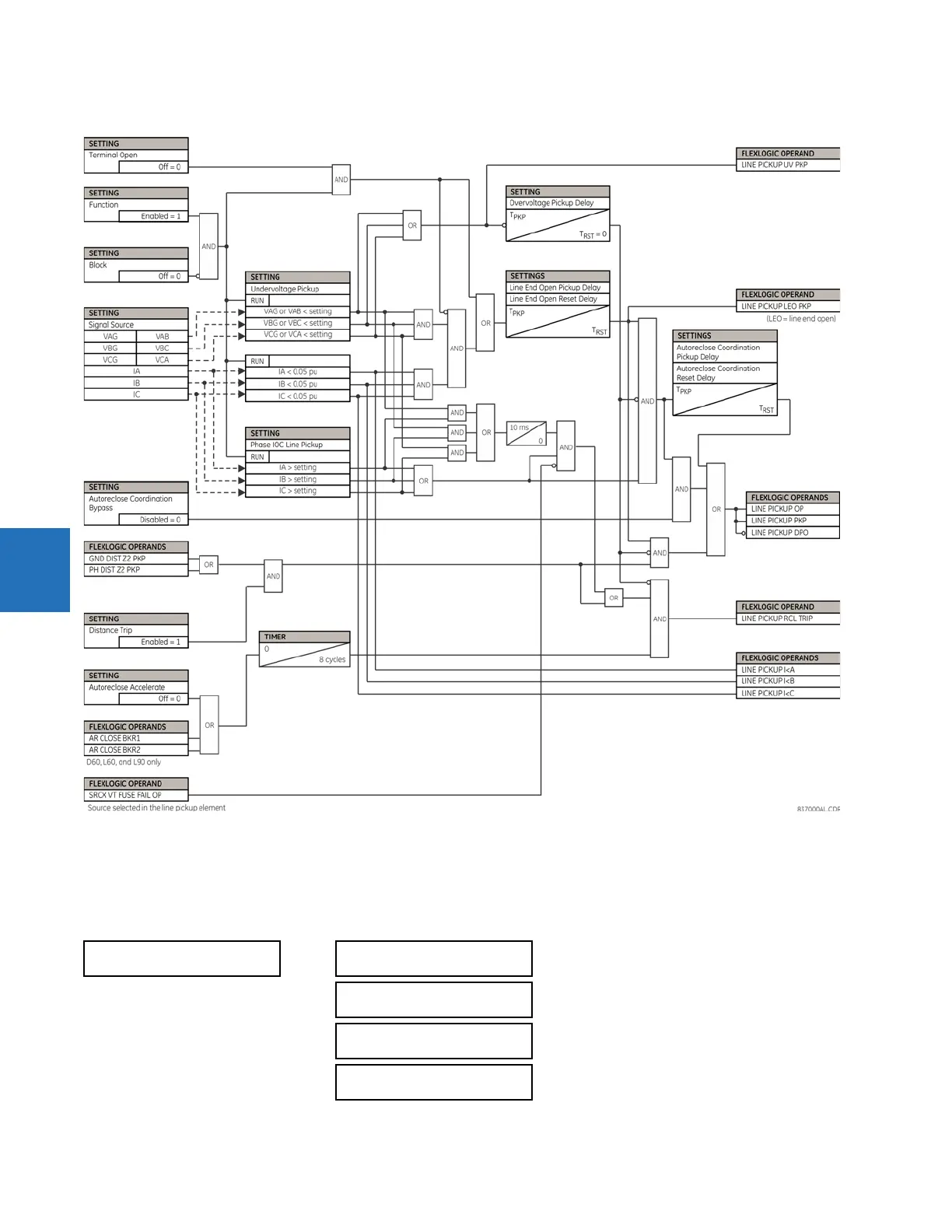

Figure 5-111: Line pickup logic
5.7.5 Distance
5.7.5.1 Menu
SETTINGS  GROUPED ELEMENTS SETTING GROUP 1(6)  DISTANCE
DISTANCE
DISTANCE
SOURCE: SRC 1
Range: SRC 1, SRC 2, SRC 3, SRC 4
MEMORY
DURATION: 10 cycles
Range: 5 to 25 cycles in steps of 1
FORCE SELF-POLAR:
Off
Range: FlexLogic operand
FORCE MEM-POLAR:
Off
Range: FlexLogic operand
