CHAPTER 4: INTERFACES FRONT PANEL INTERFACE
L90 LINE CURRENT DIFFERENTIAL SYSTEM – INSTRUCTION MANUAL 4-47
4

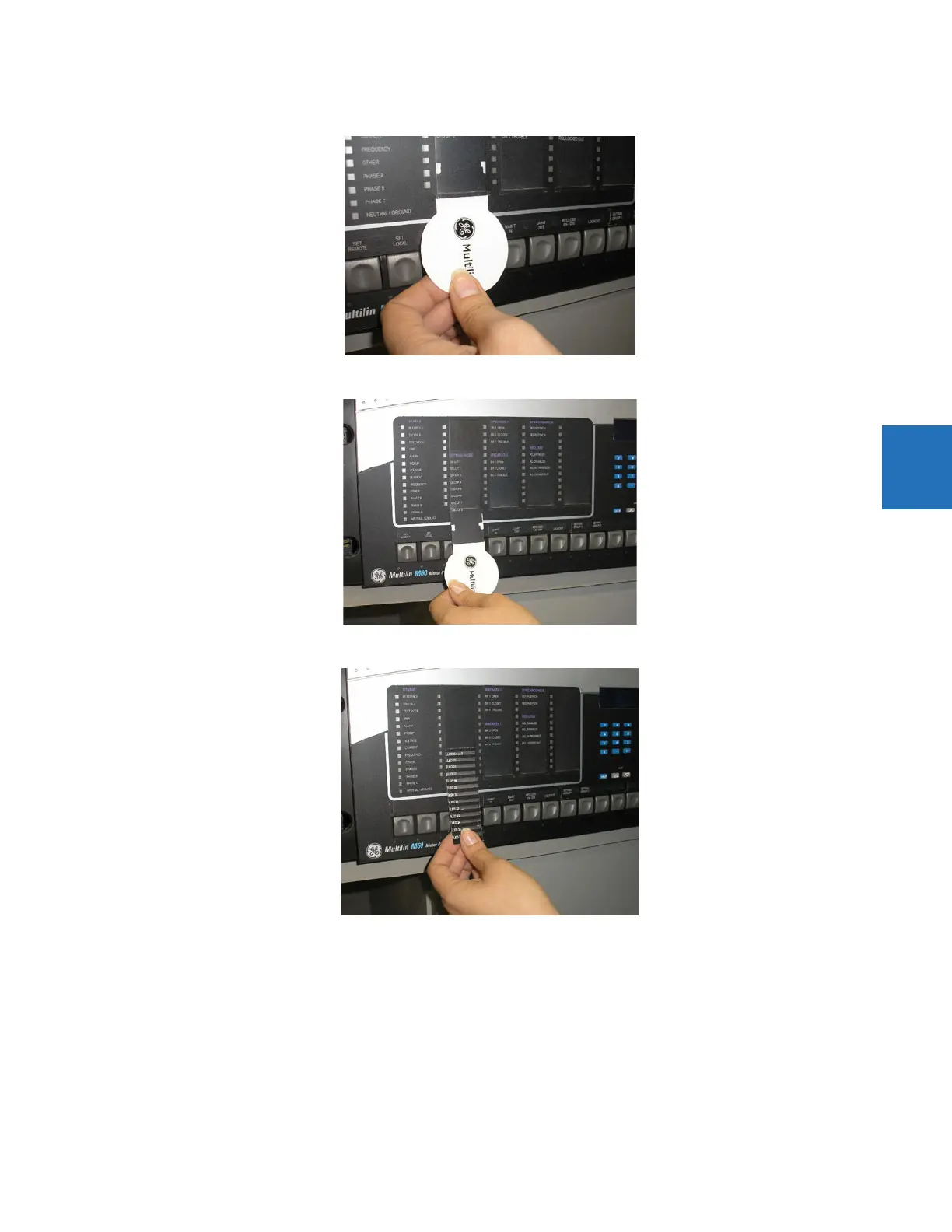

2. Slide the label tool under the LED label until the tabs snap out as shown. This attaches the label tool to the LED label.
3. Remove the tool and attached LED label as shown.
4. Slide the new LED label inside the pocket until the text is properly aligned with the LEDs, as shown.
To remove the user-programmable pushbutton labels from the L90 front panel and insert the custom labels:
1. Use the knife to lift the pushbutton label and slide the tail of the label tool underneath, as shown. Ensure that the bent
