CHAPTER 5: SETTINGS PRODUCT SETUP
L90 LINE CURRENT DIFFERENTIAL SYSTEM – INSTRUCTION MANUAL 5-45
5

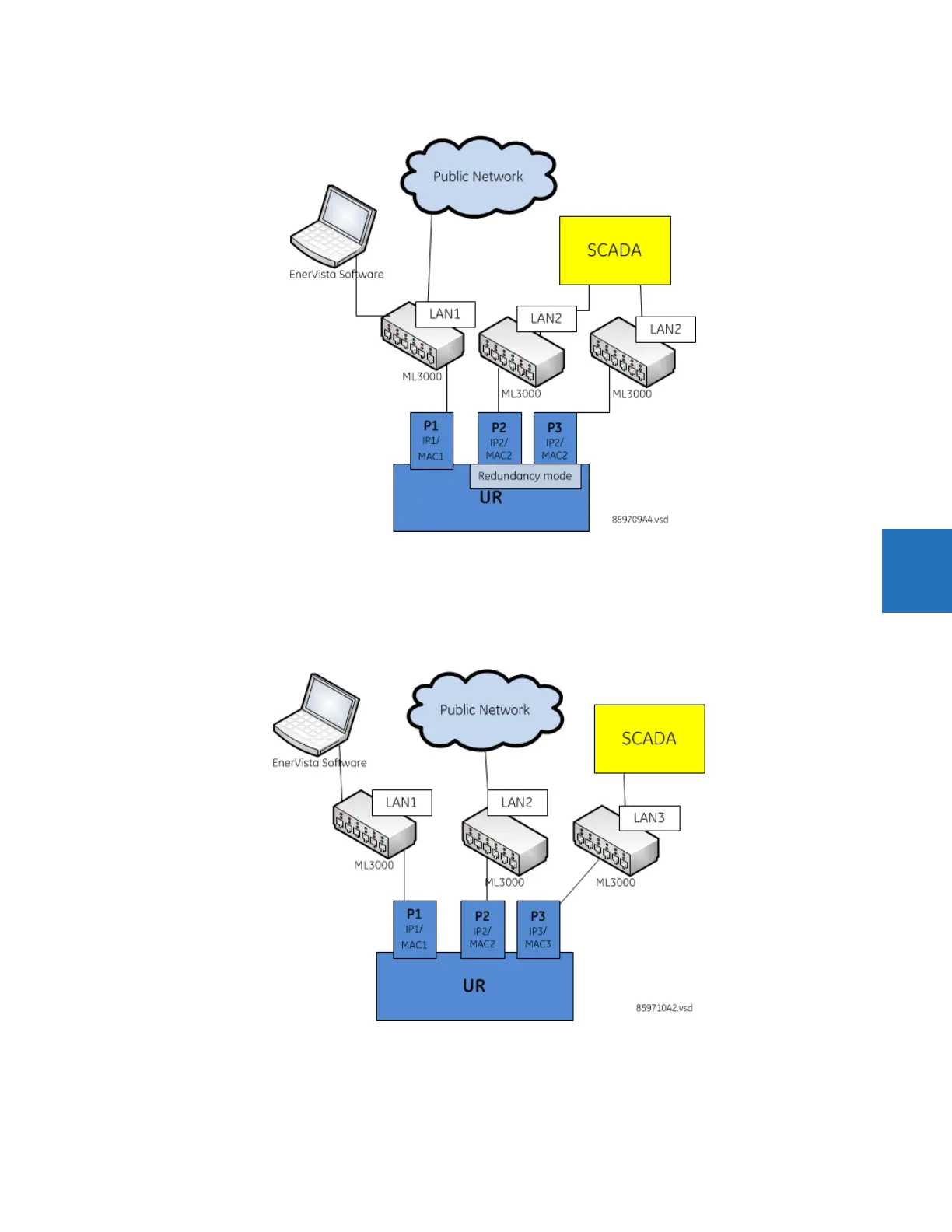

Figure 5-14: Multiple LANs, with redundancy
Multiple LANS, no redundancy
The following topology provides local configuration/monitoring through EnerVista software on LAN1, to which port 1 (P1) is
connected, access to the public network on LAN2, to which port 2 (P2) is connected, and communications with SCADA on
LAN3, to which port 3 (P3) is connected. There is no redundancy.
Figure 5-15: Multiple LANS, no redundancy
