5-100 L90 LINE CURRENT DIFFERENTIAL SYSTEM – INSTRUCTION MANUAL
PRODUCT SETUP CHAPTER 5: SETTINGS
5

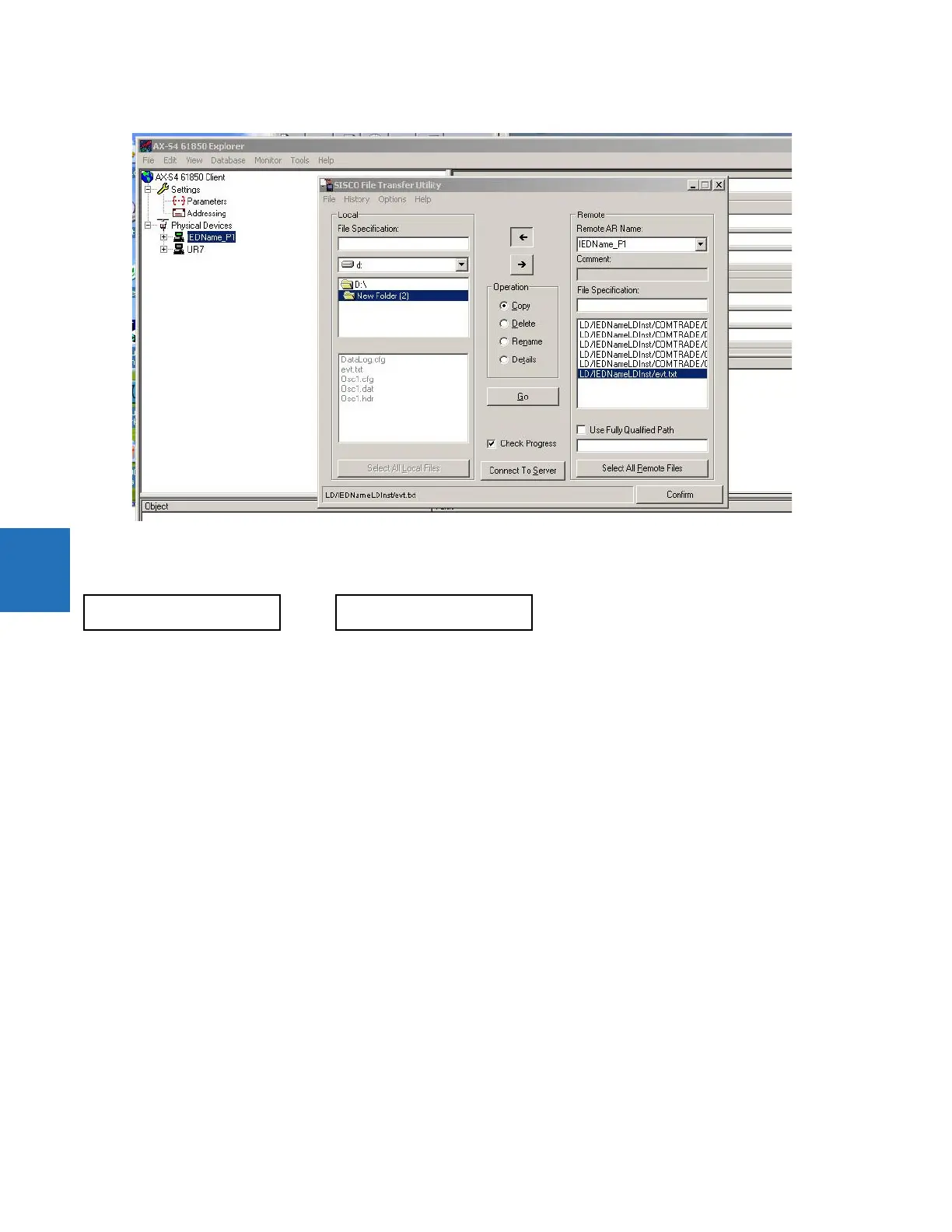

Figure 5-47: File transfer by IEC 61850
5.3.5.13 Web server HTTP protocol
SETTINGS PRODUCT SETUP COMMUNICATIONS WEB SERVER HTTP PROTOCOL
The L90 contains an embedded web server and can display pages in a web browser. The web pages are organized as a
series of menus that can be accessed starting at the L90 “Main Menu.” Web pages are read-only and are available showing
DNP and IEC 60870-5-104 points lists, Modbus registers, event records, fault reports, and so on. First connect the L90 and a
computer to an Ethernet network, then enter the IP address of the L90 Ethernet port in a web browser.
To close the port, set the port number to 0.
Any change takes effect when the L90 is restarted.
WEB SERVER
HTTP PROTOCOL
HTTP TCP PORT
NUMBER(80): 80
Range: 0 to 65535 in steps of 1
