5-148 L90 LINE CURRENT DIFFERENTIAL SYSTEM – INSTRUCTION MANUAL

SYSTEM SETUP CHAPTER 5: SETTINGS

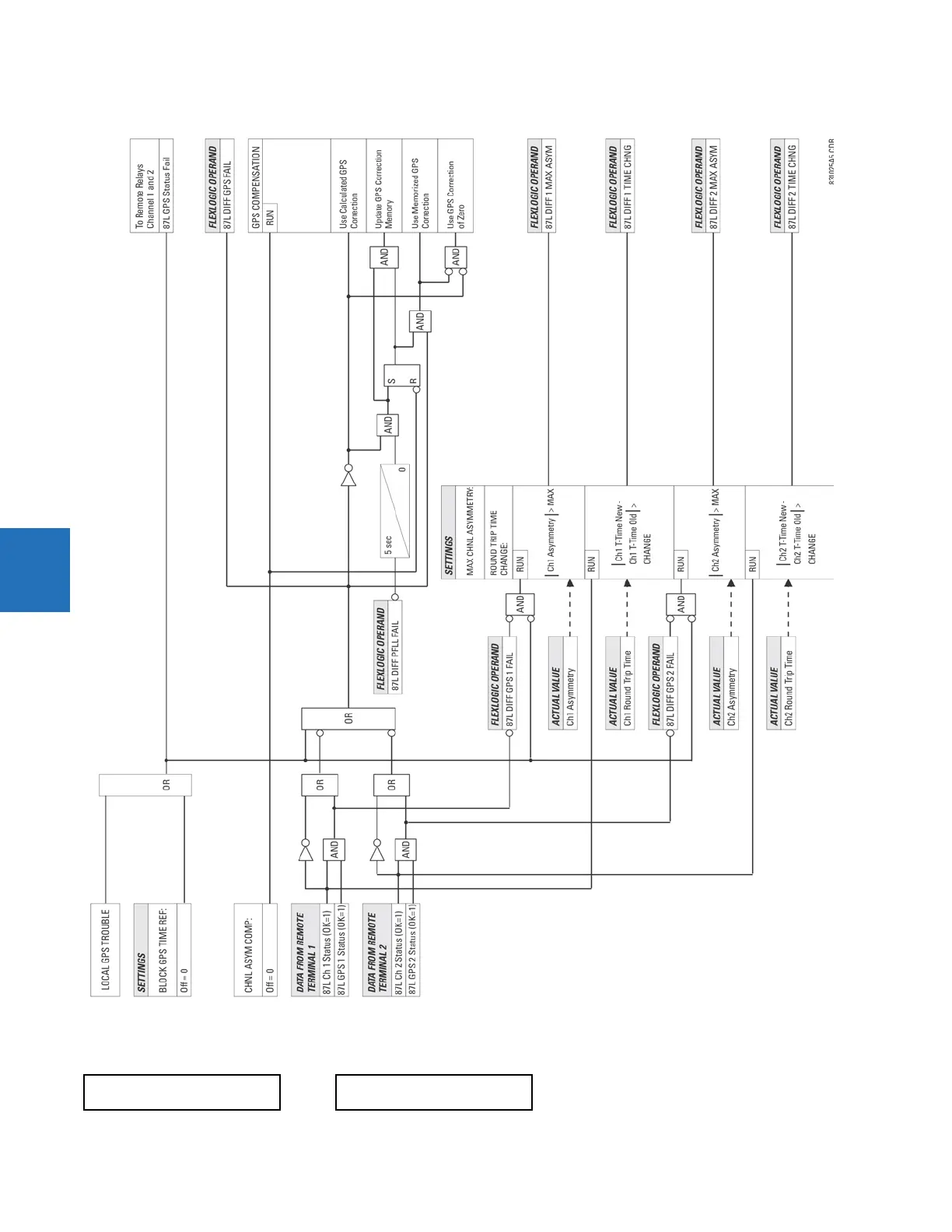

Figure 5-65: Channel asymmetry compensation logic

5.5.4.2 In-zone transformer

SETTINGS  SYSTEM SETUP  87L POWER SYSTEM  IN-ZONE TRANSFORMER

 IN-ZONE

 TRANSFORMER



IN-ZONE TRANSFORMER

CONNECTION: None

Range: None, 0 to 330° lag in steps of 30°
