5-322 L90 LINE CURRENT DIFFERENTIAL SYSTEM – INSTRUCTION MANUAL

GROUPED ELEMENTS CHAPTER 5: SETTINGS

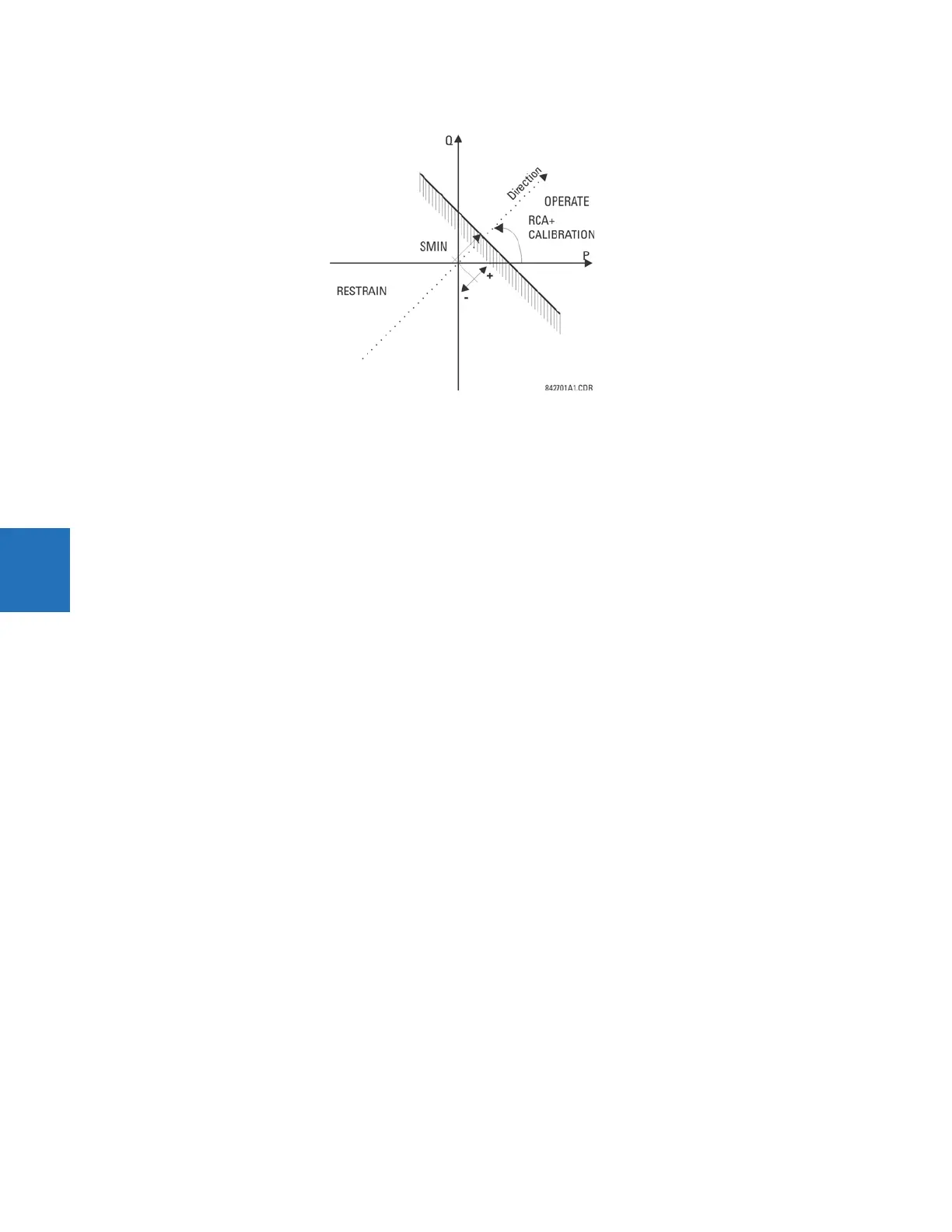

Figure 5-182: Directional power characteristic

By making the characteristic angle adjustable and providing for both negative and positive values of the minimum

operating power, a variety of operating characteristics can be achieved as presented in the following figure. For example,

section (a) in the figure shows settings for reverse power, while section (b) shows settings for low forward power

applications.
