CHAPTER 8: APPLICATION OF SETTINGS CURRENT DIFFERENTIAL (87L) SETTINGS

L90 LINE CURRENT DIFFERENTIAL SYSTEM – INSTRUCTION MANUAL 8-7

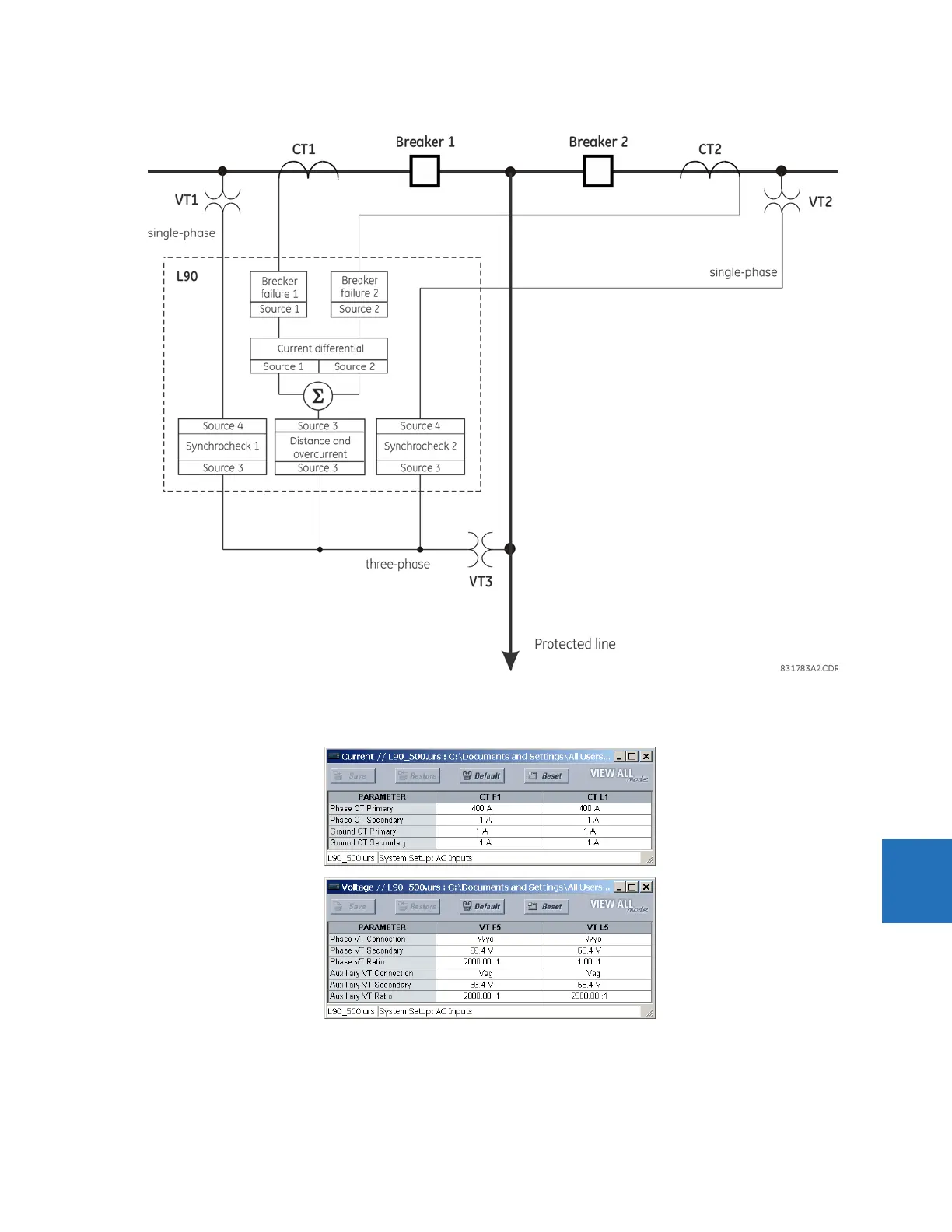

Figure 8-4: Breaker-and-a-half application

2. The CTs and VTs are configured according to the following ratios and connections (EnerVista UR Setup example

shown).

3. The sources are configured as follows.

Source 1:

– First current source for current differential
