GE L90

3-28 L90 LINE CURRENT DIFFERENTIAL SYSTEM – INSTRUCTION MANUAL
WIRING CHAPTER 3: INSTALLATION
3

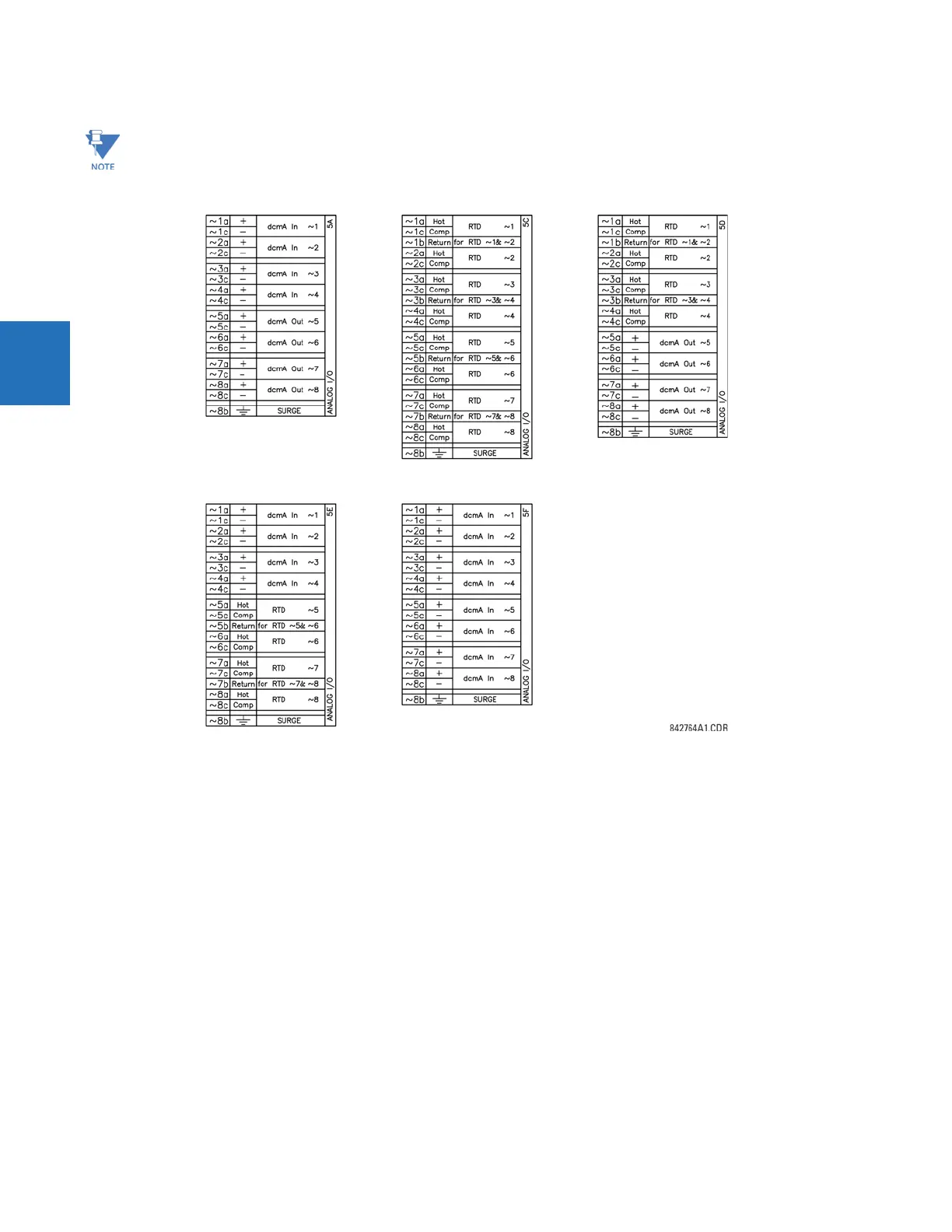

Figure 3-25: Transducer input/output module wiring
The following figure show how to connect RTDs.
Where a tilde “~” symbol appears, substitute the slot position of the module.
