General Procedures and Functional Checks
4-8 LOGIQ e – Basic Service Manual
5461614-100 English Rev. 6
Switch ON the AC Power to LOGIQ e
When power is applied to the scanner, power is distributed to
the Cooling Unit, Control Panel, LCD, Peripherals and the
Back-end Processor.
1. Press the Power On/Off switch at the front of the system
once.

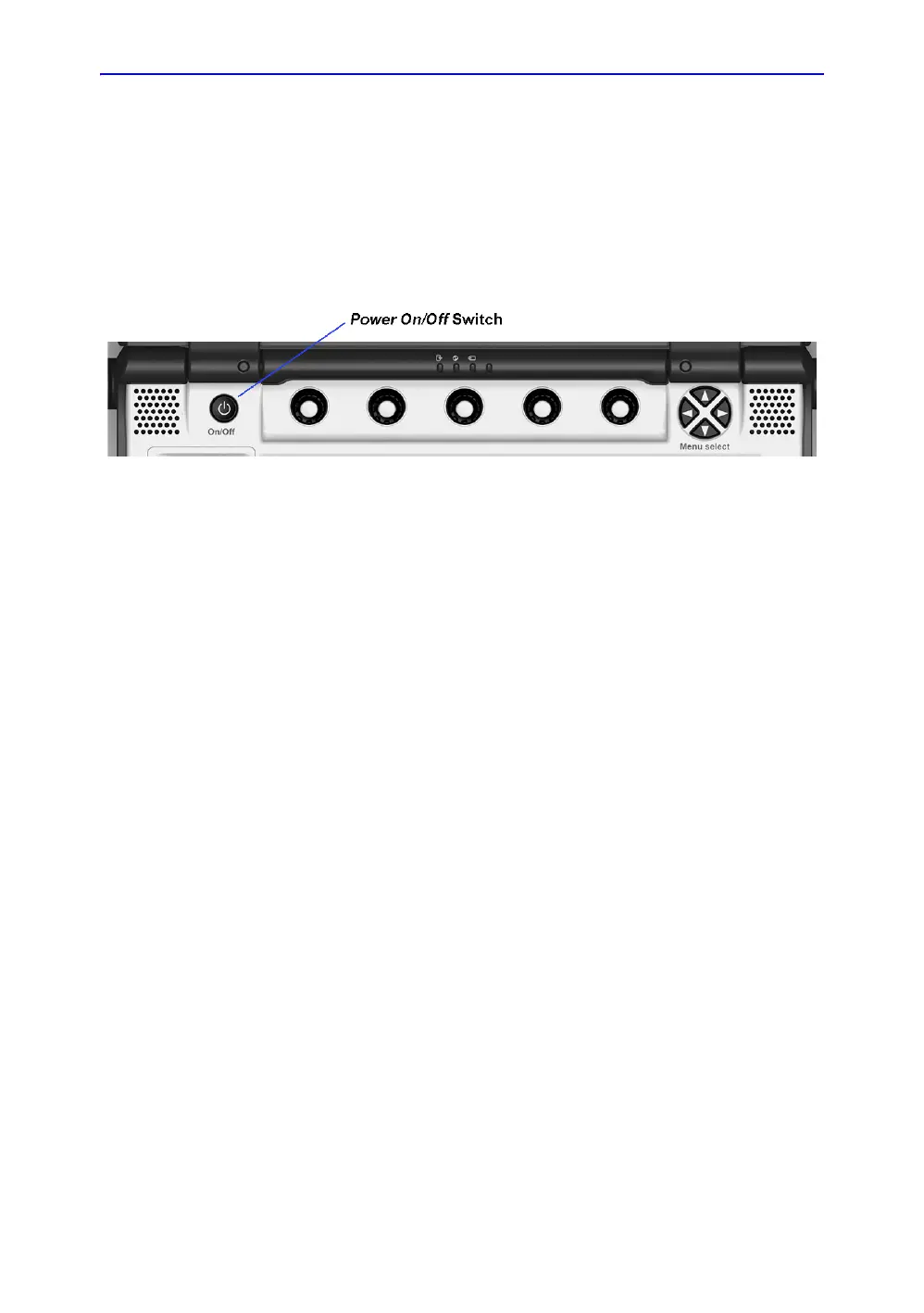

Figure 4-2. Power On/Off button
When the Power On/Off switch on the Control Panel is
pressed once, the Back-end Processor starts and the
software code is distributed to initiate the scanner.
No status messages are displayed during this process.
