Replacement Procedures
8-20 LOGIQ e – Basic Service Manual
5461614-100 English Rev. 6
Loading the System Software with USB memory stick (continued)
9. Restart the system.
If you select [a] to load the complete disk, the following
steps are required.
a. Enter the system’s Serial Number and select OK. The
system’s Serial Number is at the bottom of the system.
Press On/Off switch to restart the system.

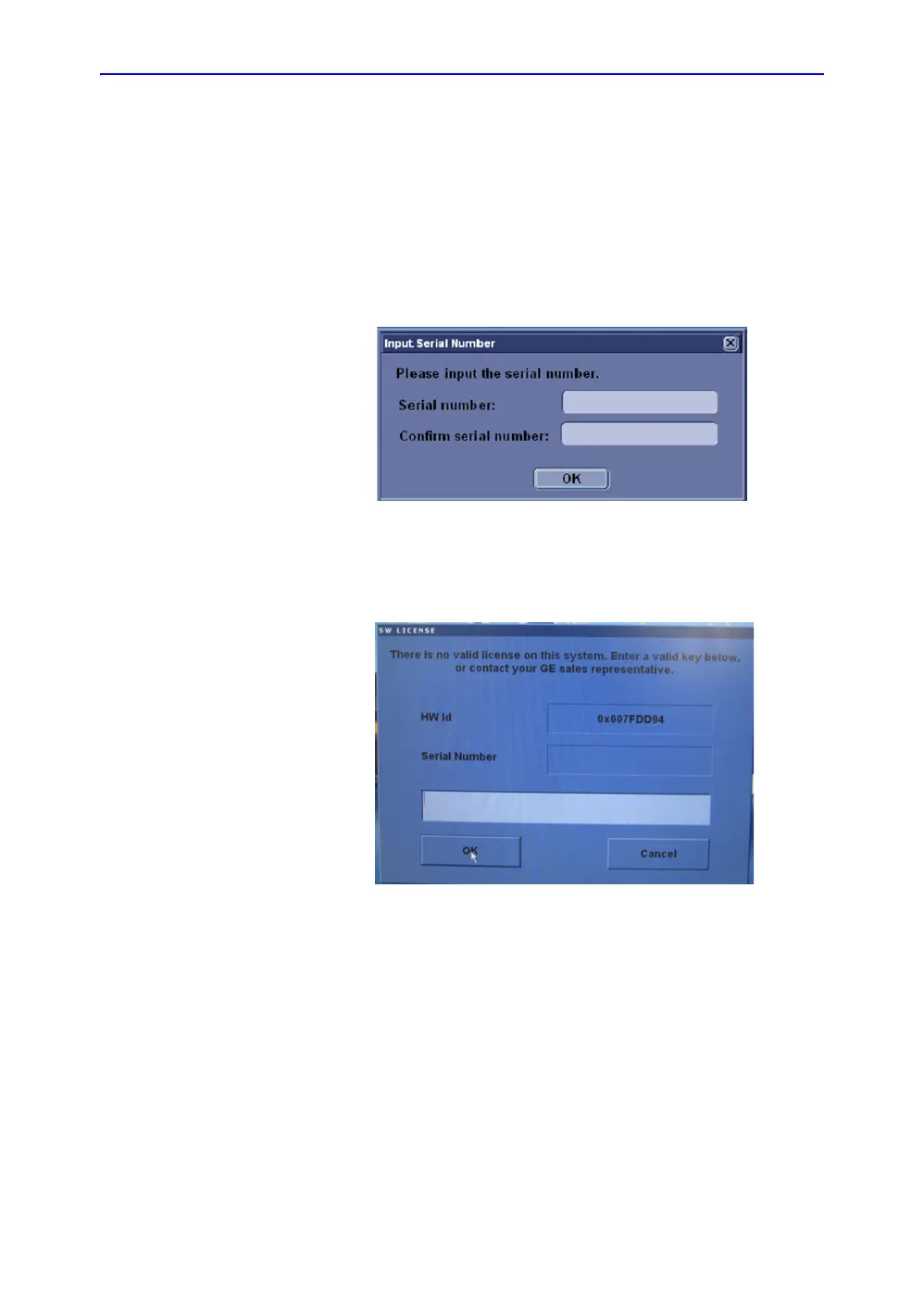

Figure 8-6. System Serial Number
b. After the system restarts, enter the software license and
select OK. The system will enter into scan mode.
Figure 8-7. Software license
To Next Page
