Loading the software
LOGIQ e – Basic Service Manual 8-21
5461614-100 English Rev. 6
Software Version check out
Functional Check-out
1. Power on LOGIQ e system and wait until system booting to
main screen.
2. Press Utility on the control panel.
3. Select the About button on the right.

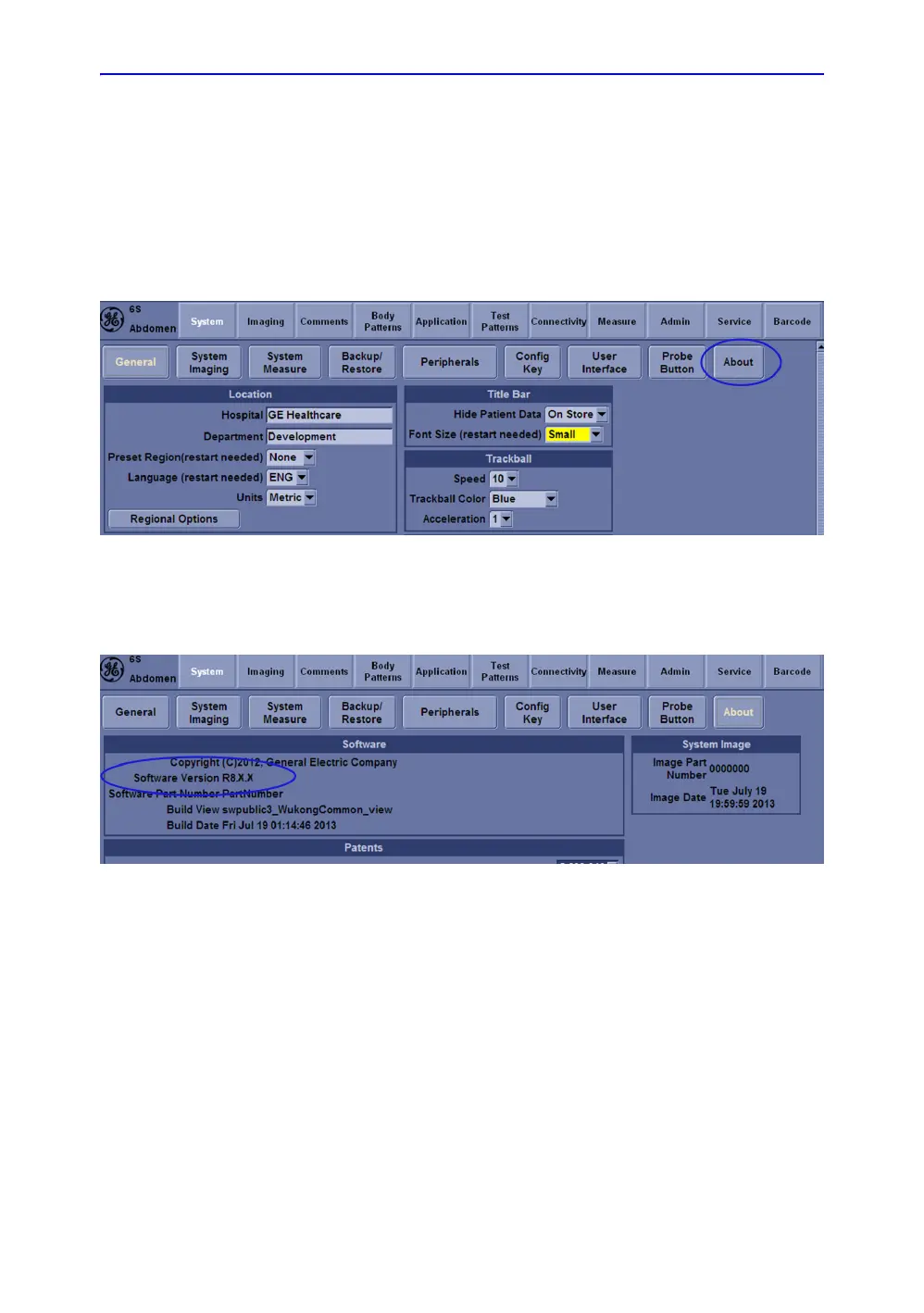

Figure 8-8. About
4. Check whether “Software Version” is the right version for
use.
Figure 8-9. Software version
