GEK-106426B MIB High Impedance Bus Differntial Relay 3-5
3 HARDWARE 3.2 HIGH IMPEDANCE MODULE DESCRIPTION
3
3.2.3 REAR DESCRIPTION
The relay is wired through the terminal blocks located at the rear of the unit. The maximum recommended cable section
for this terminal board, with the appropriate terminal, is 6 mm
2
(AWG 10).

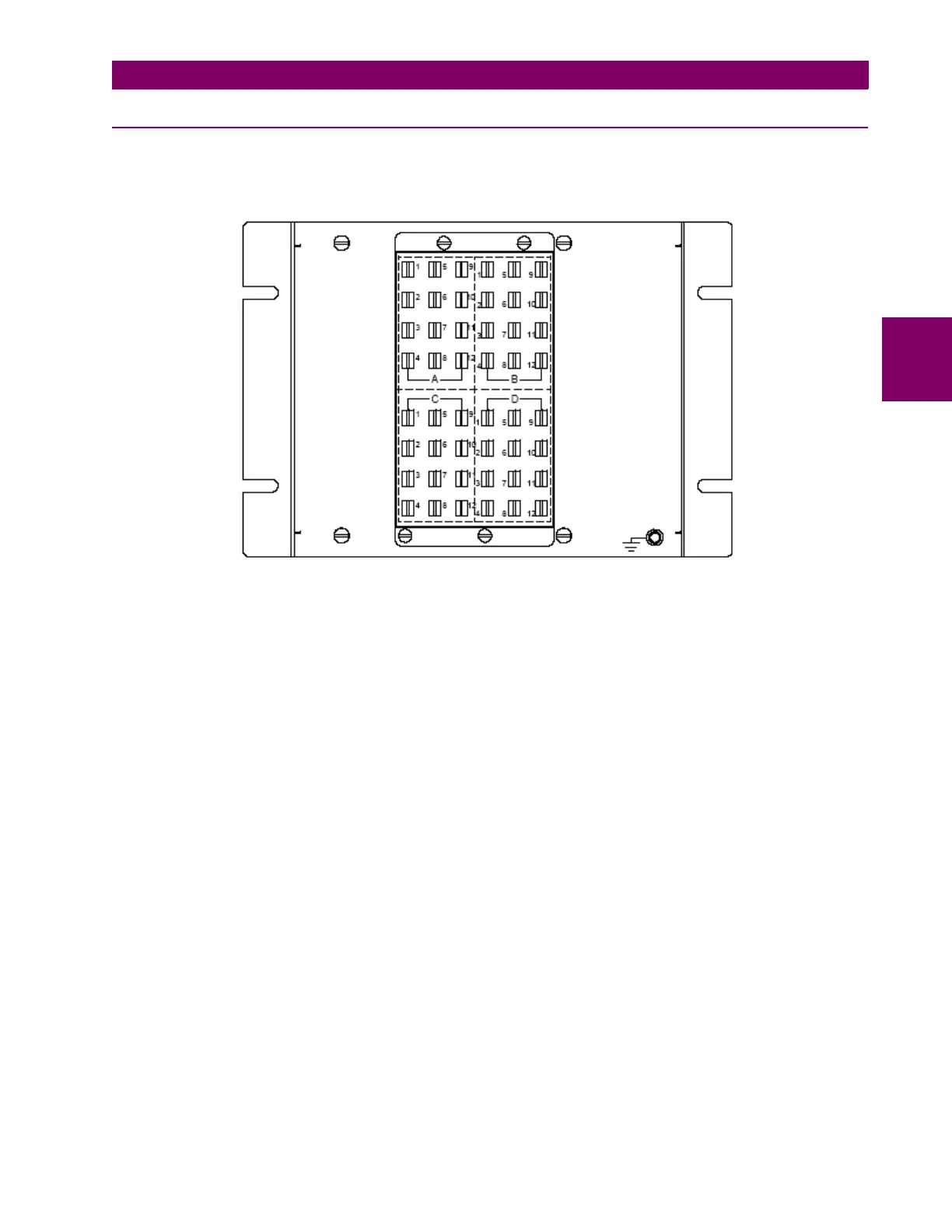

Figure 3–4: REAR TERMINALS DIAGRAM
