4-16 MIB High Impedance Bus Differntial Relay GEK-106426B
4.4 ACTUAL 4 COMMUNICATIONS
4
4.4.3 WAVEFORM CAPTURE
In the Actual - WAVEFORM CAPTURE option, the user can start the process to retrieve the Oscillography record stored
in the relay. The program will request the path and filename where the file is to be stored, by means of the following form:

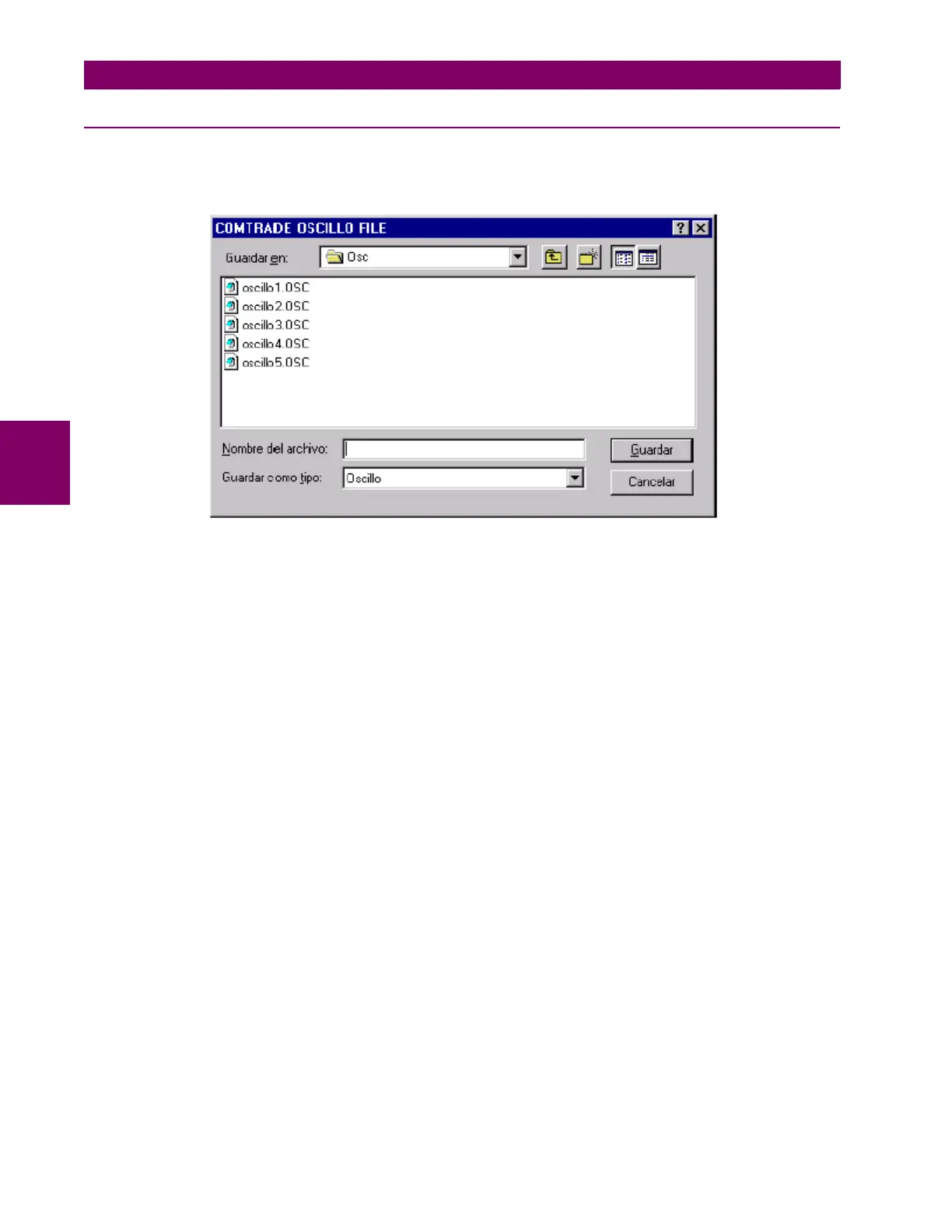

Figure 4–17: OSCILLOGRAPHY RECORD
This file can be viewed using GE_OSC software (the use of this software is described in manual GEK-105596).
