4.7 VIEW 4 COMMUNICATIONS
4
4.7VIEW 4.7.1 TRACES
TRACES option is only active when the PC is communicating with the relay. If the communication is not established, to
activate this option the user must switch communication on in Communication > Computer menu.
When TRACES are active, the ModBus communication traces will be displayed in the lower part of the screen, as shown
in Figure 4–31:

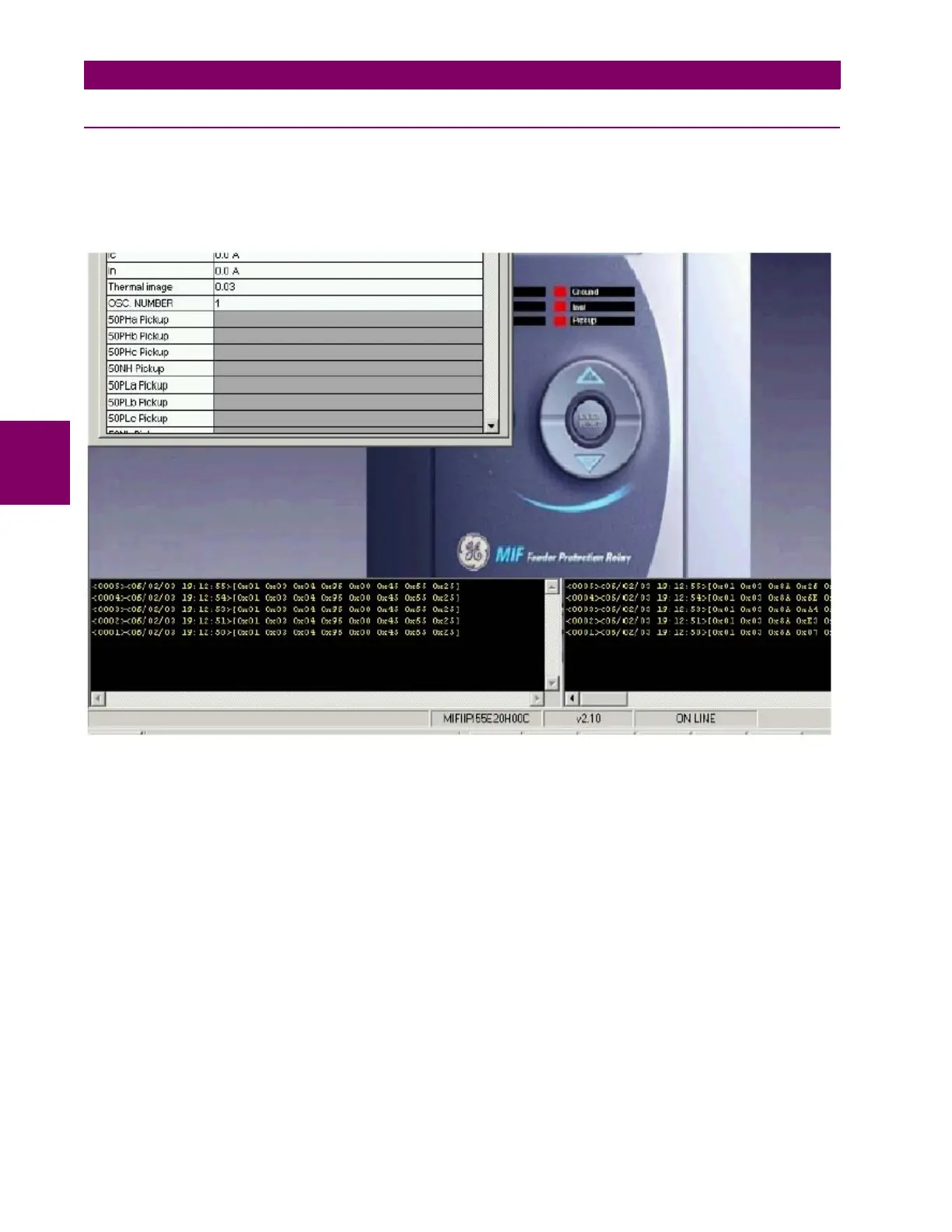

Figure 4–31: MODBUS TRACES
