GEK-106426B MIB High Impedance Bus Differntial Relay 4-13
4 COMMUNICATIONS 4.3 SETPOINT
4
4.3.6 CLOCK
The clock option opens a window with two choices:
• Sending the PC date and time to the unit, this is, synchronizing the PC and the unit.
• Selecting a date and a time and sending it to the relay.

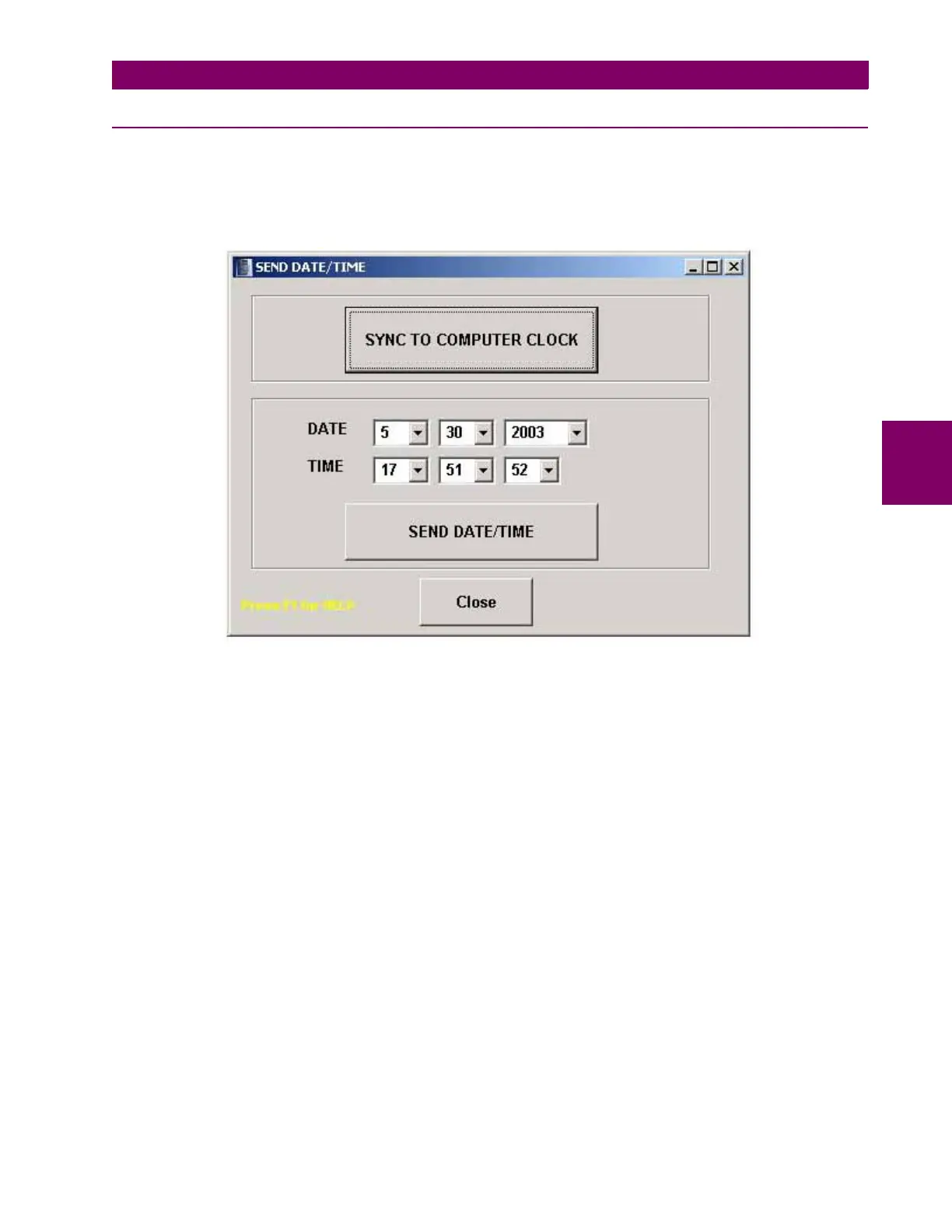

Figure 4–14: CLOCK
Once the new date and time have been sent, the user can check in the status graph, or even in the relay itself, that the
new date/time has been correctly entered.
