4-14 MIB High Impedance Bus Differntial Relay GEK-106426B
4.4 ACTUAL 4 COMMUNICATIONS
4
4.4ACTUAL 4.4.1 ACTUAL VALUES
Actual - Actual values menu displays the Status Window shown in Figure 4–15:. This window shows internal relay
information, measures, function status as well as additional information. There is a vertical scroll bar to navigate up and
down the table to reach the desired information:
• Relay model number and firmware version.
• Relay internal date and time.
• Values of currents, voltages and powers (phase and ground).
• Protection function status (pickup / trip for each function).
• Active settings group number.
• Contact inputs and outputs status, and LEDs status.
• Information from the self-test functions of the device.

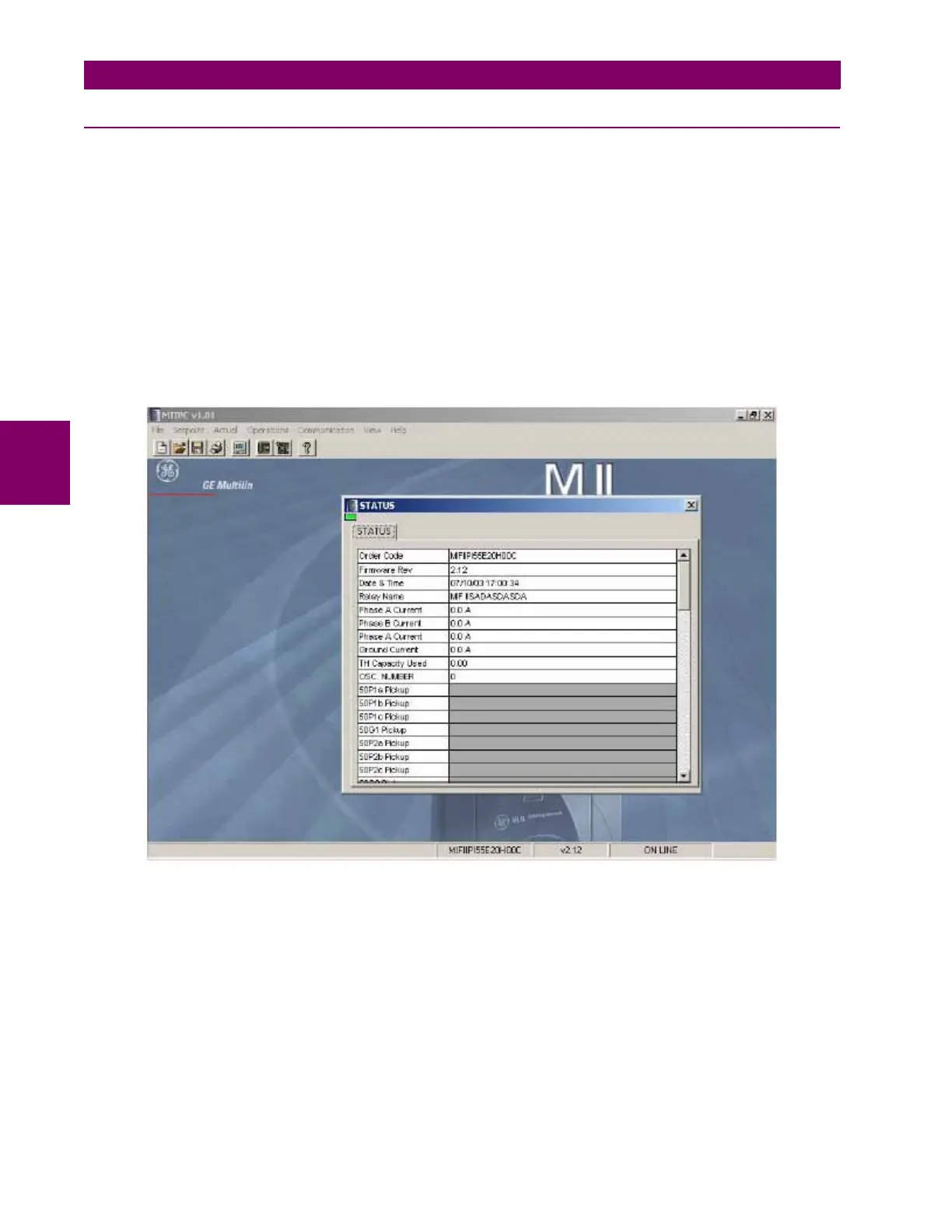

Figure 4–15: STATUS WINDOW
