Chapter 2. CPU Features & Specifications
74 PACSystems* RX7i, RX3i and RSTi-EP CPU Reference Manual GFK-2222AD

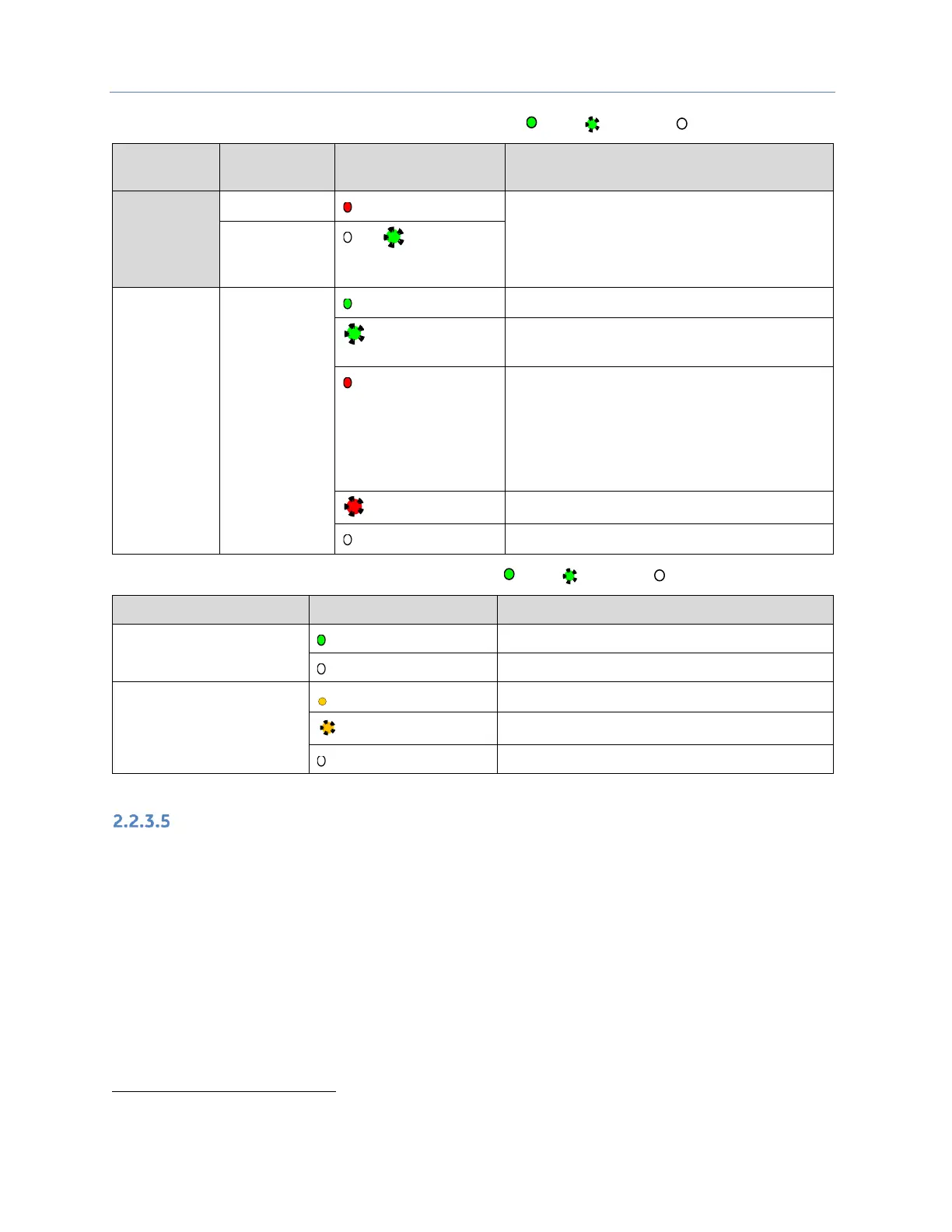

RDSD Indicators CPE302/CPE305 & CPE310
On
Blinking
Off
CPE302/
CPE305 LED
CPE310 LED
LED State
RDSD Operating State
SYS FLT
On Red
The RDSD has been removed during a store. The
CPU must be power cycled to resume RDSD
operations.
RDSD / COM2
Off or
Blinking
Green
RDSD
45
RDSD
45
/COM2
On Green
Valid RDSD connected or data transfer complete.
Blinking
Green
Data transfer in progress.
On Red
RDSD fault. Check for and correct the following
conditions:
• CPU type mismatch with project on RDSD.
• Data transfer error.
• Corrupted or invalid USB file system.
• Insufficient space on RDSD.
Blinking Red
RDSD-Controller project name mismatch.
Off
RDSD not attached or USB port is disabled.
Ethernet Indicators CPE302/CPE305 & CPE310
On
Blinking
Off
LED
LED State
CPU Operating State
100
On Green
Network data speed is 100 Mbps.
Off
Network data speed is 10 Mbps.
LINK
On Amber
The link is physically connected.
Blinking Amber
Traffic is detected at the corresponding port.
Off
No connection detected.
Error Checking and Correction
CPE302, CPE305 and CPE310 do not support error checking and correction (ECC).
45
RDSD active: RDSD attached to USB-A RDSD port.
