Touch panel / operating panel OptiCenter OC09
Design and function
Operating and display elements

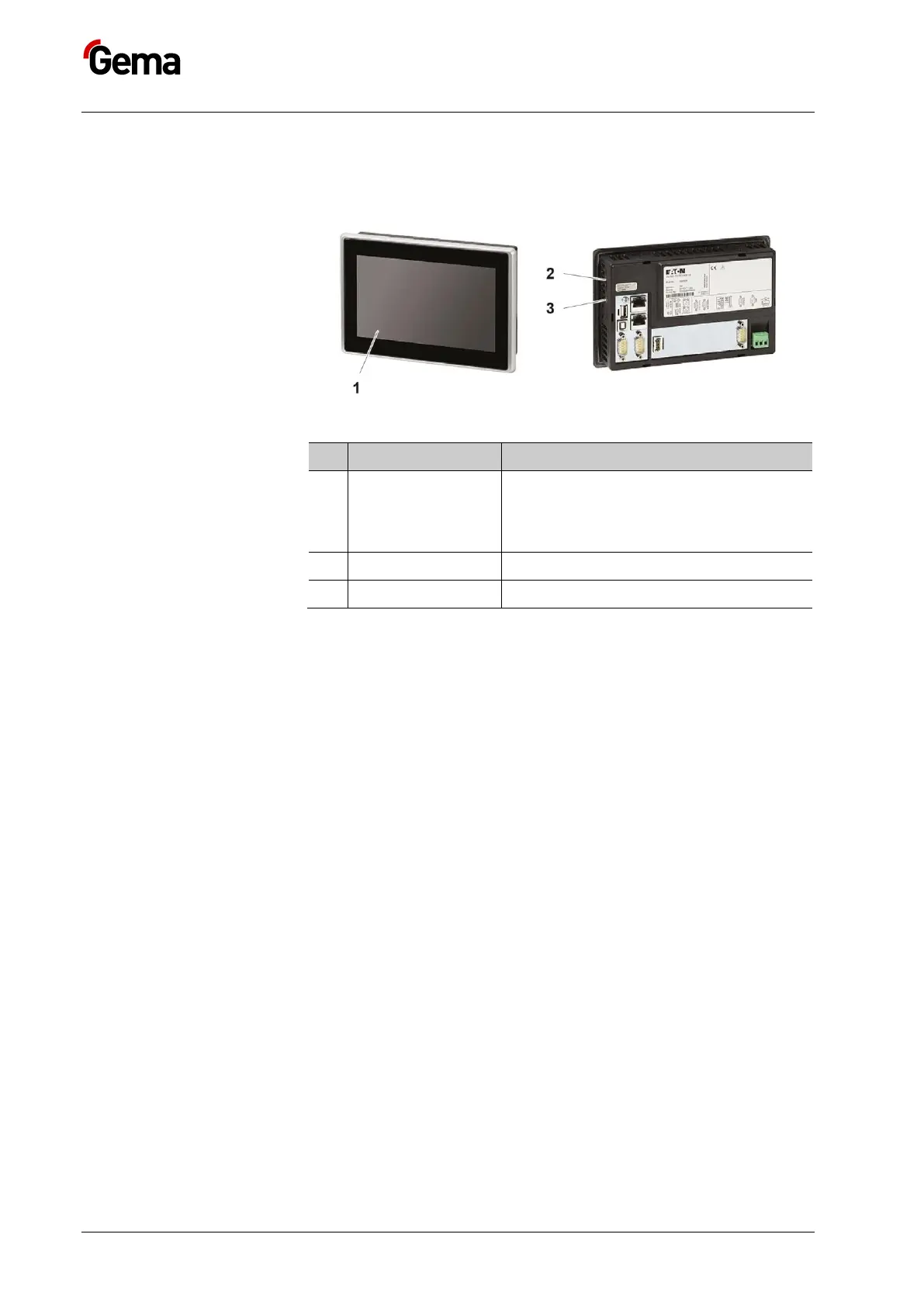

Fig.
22
: Front and back
Designation
Description
1
Display, touch
sensor
Operating and display elements
Acquisition of the actuation of the
operating elements shown on the display.
Operated by touch using fingers.
2
SD card slot
Slot for SD card
3
CTRL button
Exits the visualization program
