101

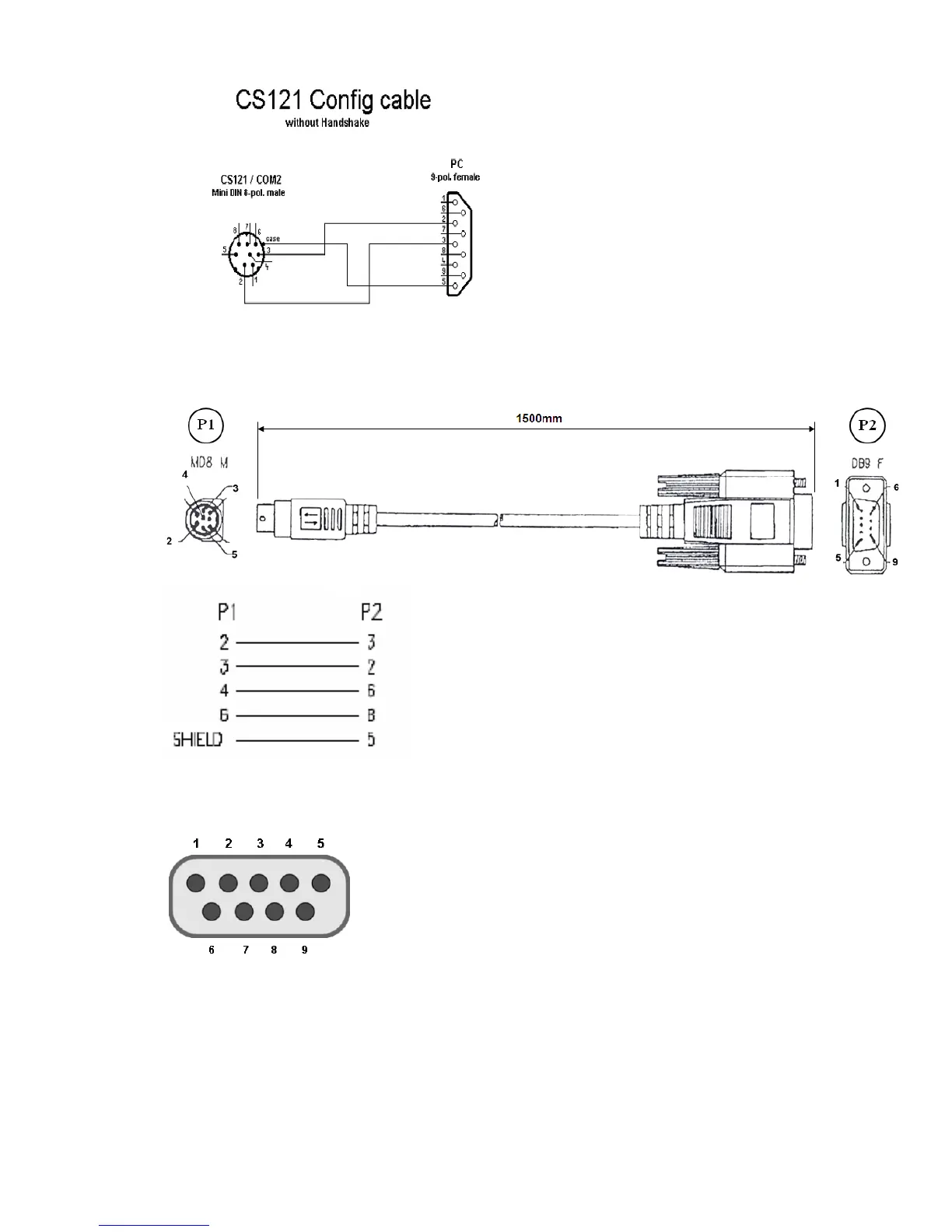

Figure 126: Cable configuration HW121 COM2
CS121 HW121/HW131 configuration cable with handshake
Figure 127: Cable configuration HW121/HW131 COM2
Pin Layout CS121 COM1:
Figure 128: External D-SUB 9-polig male
Pin1:
DCD
Pin6:
DSR
Pin2:
RxD
Pin7:
RTS
Pin3
TxD
Pin8:
CTS
Pin4
DTR
Pin9:
RI
Pin5
GND
