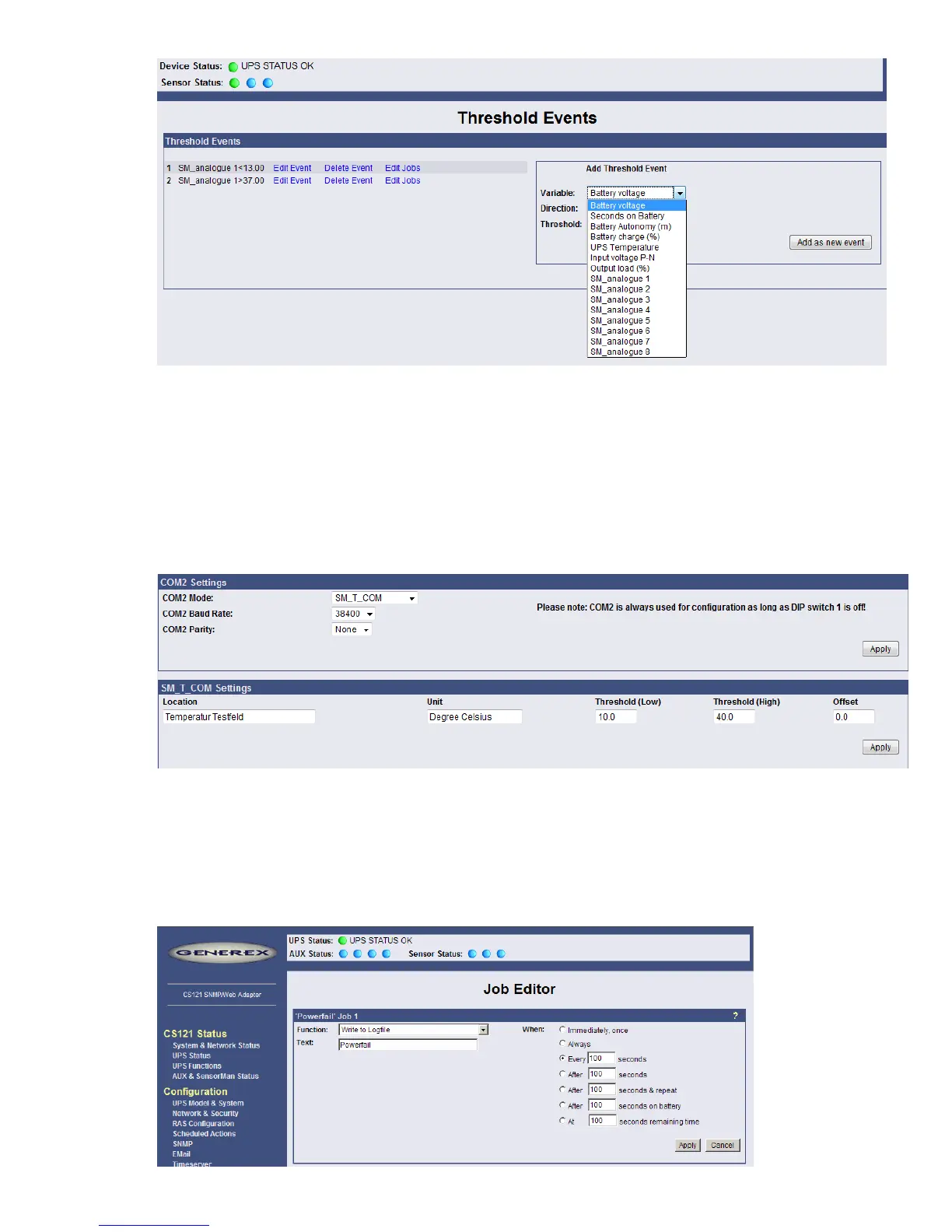

Figure 31: HTTP – Treshold event
The CS121 firmware version 4.27.x or higher provides the option to configure pre-threshold
events for the analog sensor inputs (temperature, humidity etc.) additionally. In this example a
pre-threshold alarm for a SM_T_COM temperature sensor for the value temperature low of
13°C and temperature high of 37°C were defined. The analogue values for external sensors
are configurable through the variable SM_analogue 1-8. The proper threshold events for
temperature low of 10°C and temperature high of 40°C were defined into the menu “COM2 &
AUX” for the SM_T_COM.
Figure 32: HTTP – COM2 Treshold events SM_T_COM
3.2.10.2 Logfile entries
For a numerous of events logfile-entries are already pre-configured as default. To configure a
new logfile-entry, type in the field “Text” the desired message you wish to enter in the logfile
and choose the option on the right side, when/how often the message should appear in the
logfile.
