96

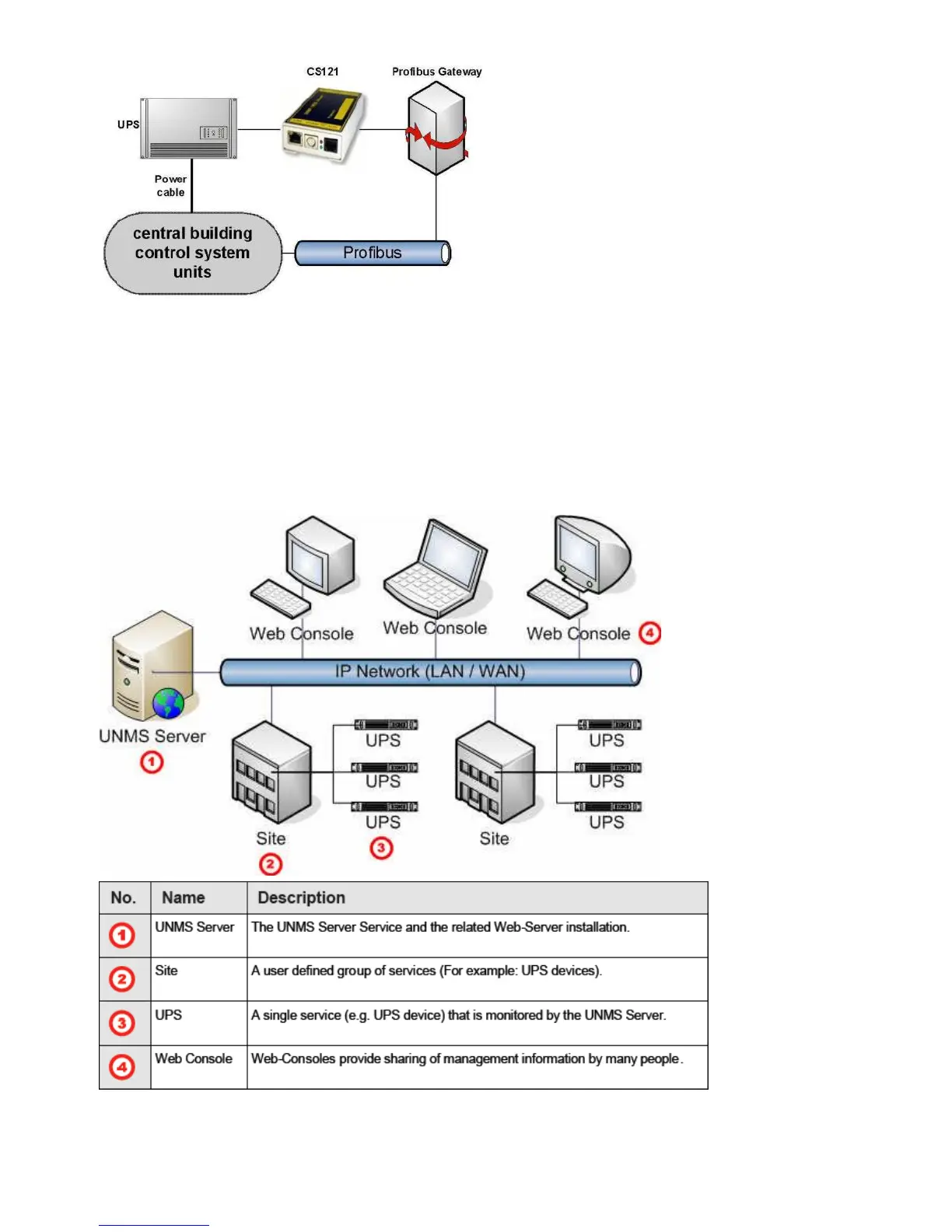

Figure 121: CS121 PROFIBUS Installation
6.8 UNMS (UPS-Network Management System)
UNMS II is a UPS network monitor designed to inform you of emergency power supply
systems problems before your clients, end-users or managers do. The UNMS as a limited
version is part of every UPSMAN license (UPSMAN suite contains UPSMAN RS232/USB UPS
Manager, UPSMON Windows client and UNMS 2 – limited to 9 UPS). The UNMS Server
Service runs intermittent checks on UPS devices you specify. When problems are
encountered, the UNMS Server Service can send notifications out to administrative contacts in
a variety of different ways (For example: Email). Current status information, historical logs, and
reports can all be accessed via a web browser (Web Console).
Figure 122: UNMS-Installation
