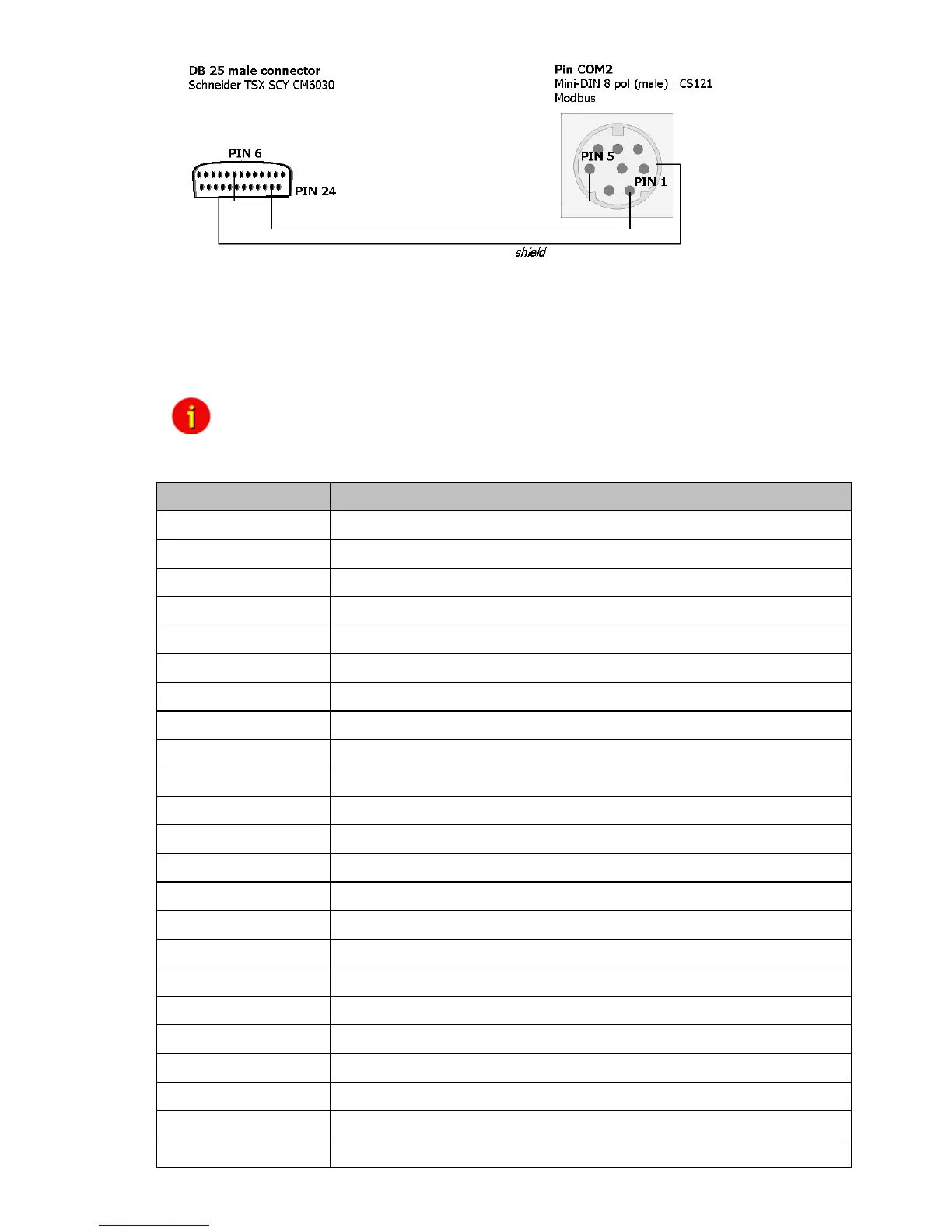

Figure 138: MODBUS - Cable 112
NOTE: it is very important that the Shield is connected to the MINI 8 housing and to the
MODBUS requesting device common ground!
E. Available Variables of the CS121
Note: Not all variables are supported from all UPS-models. Please try the use
of the variable to see, whether your UPS supports the variable or not.
Variable
Meaning
OUTPUT_VOLT
Output voltage - only supported from specified USV manufactures
OUTPUT_CURRENT
Output currency
SECSONBATT
Seconds, since the event power outage has been released
STATUS
Actual UPS state
INVOLT0
Input voltage, phase 1
INVOLT1
Input voltage, phase 2
INVOLT2
Input voltage, phase 3
INCURR
Input currency
BATTVOLT
Battery voltage
TEMPDEG
Ambient or operating temperature – depends on the UPS-Model
AUTONOMTIME
Power-on time left over under actual charge
BATTCAP
Capacity of the battery in percent
OUTPOWER0
Load in percent, phase 1
OUTPOWER1
Load in percent, phase 2
OUTPOWER2
Load in percent, phase 3
INFREQ0
Input frequency, phase 1
INFREQ1
Input frequency, phase 2
INFREQ2
Input frequency, phase 3
OUTFREQ0
Output frequency, phase 1
OUTFREQ1
Output frequency, phase 2
OUTFREQ2
Output frequency, phase 3
CONNECT
ID of the used UPS protocol
CABLE
ID of the used cable type
