Confirm Analog-Alarm : The way it works with the ACK of analog alarms like Temperature
thresholds exceed on the UNMS.
Syntax : |UPSCMD|20002|x
where x is the Portnr. (1-8). („20002“ is the ACK command for for analog signals)
Syntax example: |UPSCMD|20001|4
This command confirms the Analog-Alarm 4 on a SITEMANAGER, SITEMONITOR,
SITESWITCH or CS121 AUX Inputs.
3.2.12.1.6 RCCMD Trap
RCCMD Trap is the automatic messaging system of CS121, working with RCCMD clients. If
jobs have been configured in this category, the actions that are set here will be executed only
when an RCCMD client has established a connection to the UPSMON server of the CS121.

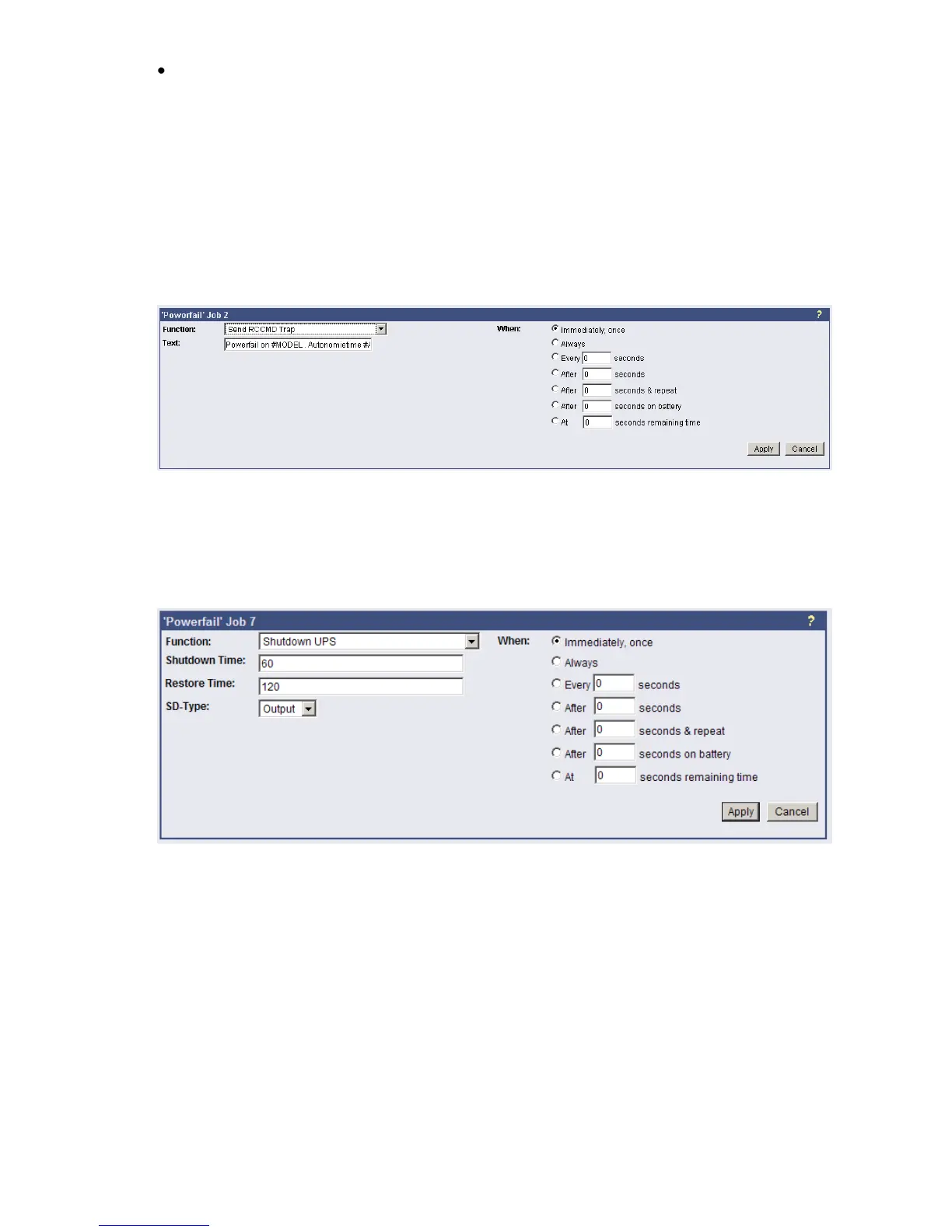

Figure 55: HTTP - Job Editor: RCCMD-Trap
3.2.12.2 UPS shutdown
This event action enables an UPS shutdown. It is possible to configure when to send a
shutdown signal to the UPS in case of an e.g. battery low, firealarm or if a complete power
down is wanted. Attention: This command will cut off the power supply – only for UPS which
support this function!
Figure 56: HTTP - Job Editor: Shutdown UPS-Job
The example above configures that 60 seconds after the event powerfail has occurred, the
UPS is initiating a shutdown and the UPS waits another 120 seconds after the event powerfail
is gone (power restored), before the UPS start up is initiated.
