Generex CS121BL - Description of the Alarms for Single-Phase UPS

126
Output Normal
Output normal, normal condition
Redundancy Ok
Redundancy is at hand
AUX Port 1 High
AUX port 1 opened
AUX Port 2 High
AUX port 2 opened
AUX Port 3 High
AUX port 3 opened
AUX Port 4 High
AUX port 4 opened
AUX Port 1 Low
AUX port 1 closed
AUX Port 2 Low
AUX port 2 closed
AUX Port 3 Low
AUX port 3 closed
AUX Port 4 Low
AUX port 4 closed

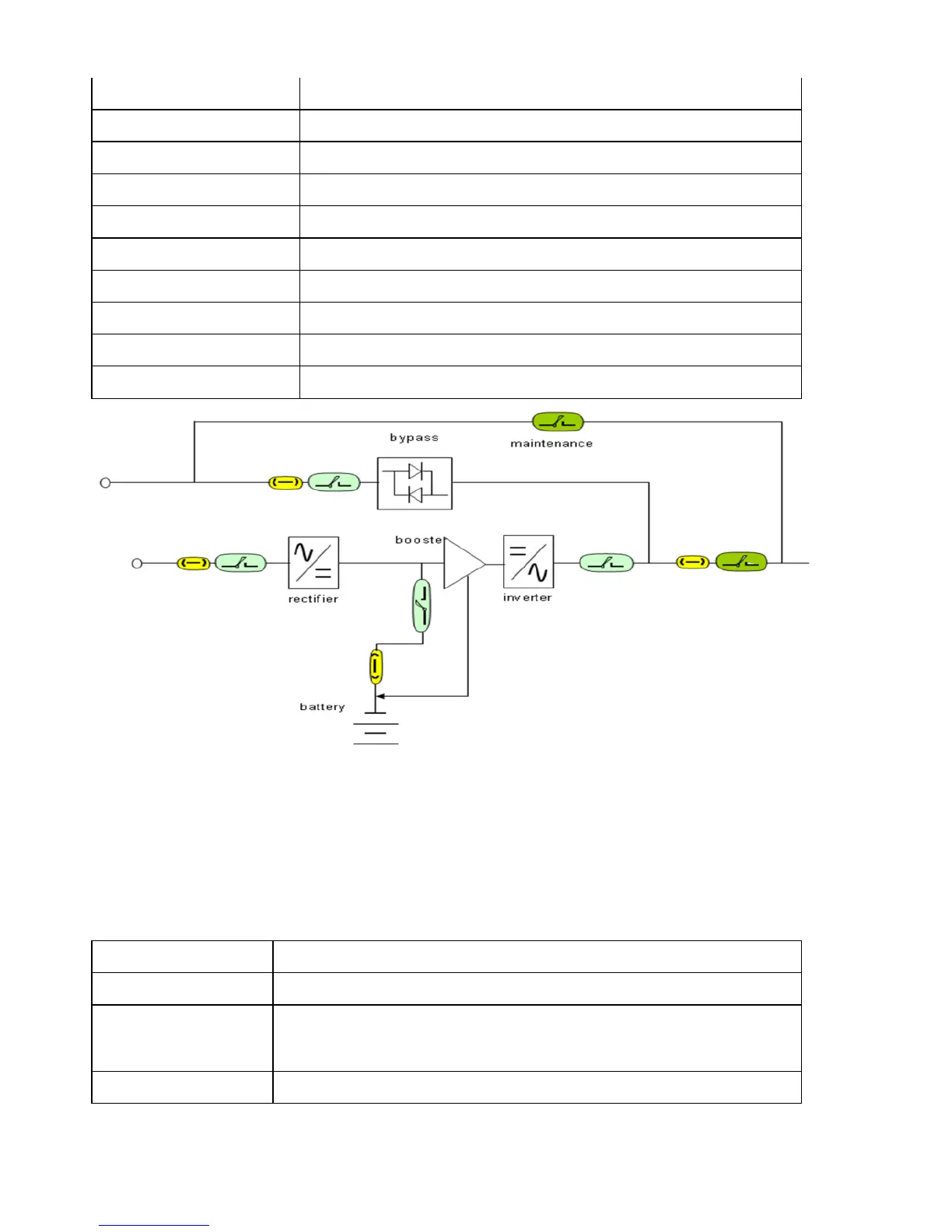

Schematic drawing of an UPS, e. g. NEWAVE
Yellow = Fuse
Blue = Automatic breaker
Green = Manual Breaker
H. Description of the alarms for single-phase UPS
Event
Description
Powerfail
UPS is on battery and the autonomy time decreases. ADVICE: The RCCMD
shutdowns will be set into this alarm, to send shutdown signals to the
clients, if the powerfail will last longer!
Power restored
Power supply restored
