Generex CS121BL - Page 95

93

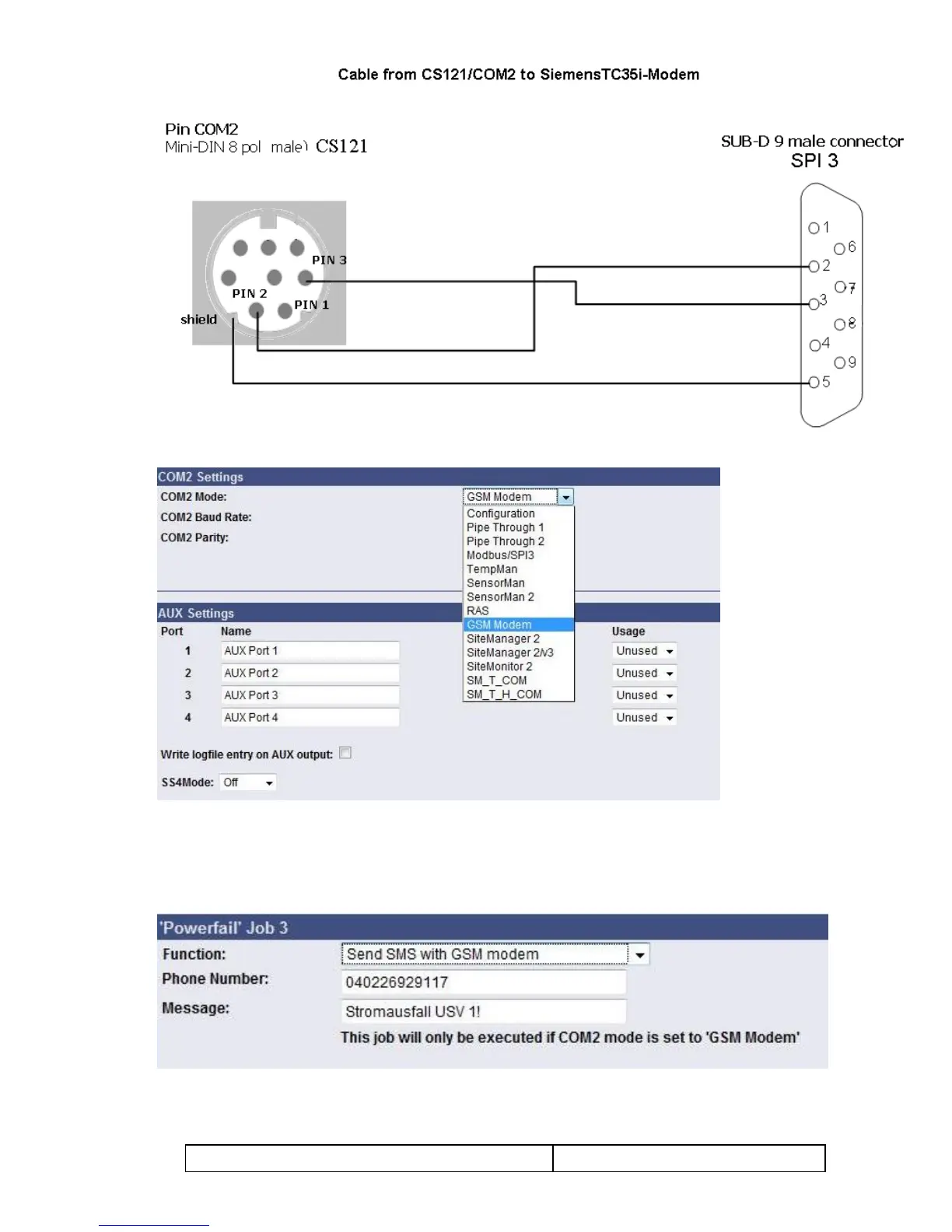

Figure 114: Mini8-DSUB9 Cable Cross-Section
Figure 115: COM2 Mode: GSM Modem
Add an accordant function via the “Events / Alarms” menu. Select the function “Send SMS with
GSM modem” for the notification via SMS and set the telephone number of the receiver and
the message.
Figure 116: Configuration of the Function
LED Status Display
Operating Status:
LED Signaling:
