INTUITIVE DISPLAYS
The ReACT Pro uses Genesis Scuba's unique Dive Profile icon (Fig. 2a) and easy to understand
icons, displaying information where you would expect it to be when looking at a log profile.
When you enter special situations, such as Decompression, High PO2, High O2, and Out of
Range modes, an UP Arrow icon (Fig. 2b) will be displayed as a warning that a controlled ascent
is required.
It is imperative that you understand the formats, ranges, and values of the information presented
by the ReACT Pro's numeric and graphic displays to avoid any possible misunderstanding that
could result in error.
NOTE: Throughout this manual reference is made to the term ''breathing
gas', the rationale being that the ReACT Pro can be used for 'air' dives or
'nitrox' dives. For clarity these terms are defined as -
Breathing Gas - the gaseous mixture breathed during a dive.
Air - a breathing gas that contains approximately 21% oxygen and 79%
nitrogen (nature's common nitrogen-oxygen mixture).
Nitrox - a nitrogen-oxygen breathing gas that contains a higher fraction of
oxygen (22 to 50%) than air.

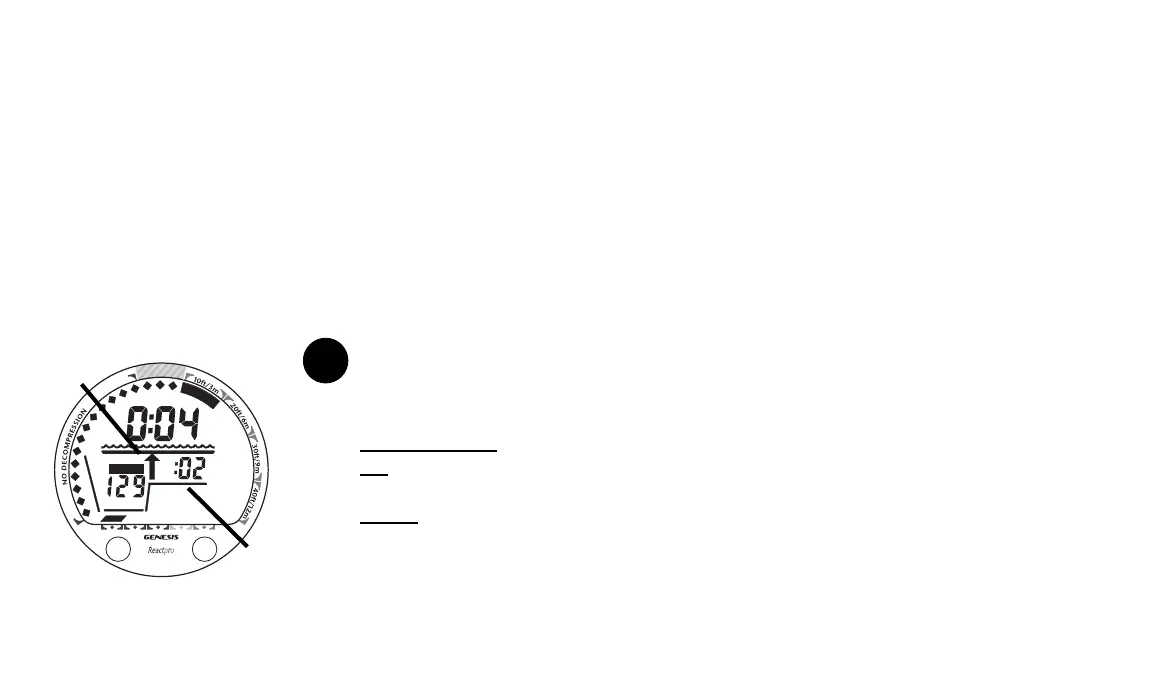

Fig. 2 - Profile & Arrow
Icons
a
b
N
