PC INTERFACE MODE
While the Surface Main screen is displayed, data can be downloaded from the React Pro or set-
tings can be uploaded to it, by connecting it to a compatible PC using a special PC Interface
Cable (USB) and setting up the PC program. When the cable is connected, a PC screen will be
displayed for 2 minutes, or until the data transfer is complete if less.
While the PC screen is displayed, the buttons on the React Pro will be disabled. Interruption of
the connection will only occur if the cable is disconnected during the countdown.

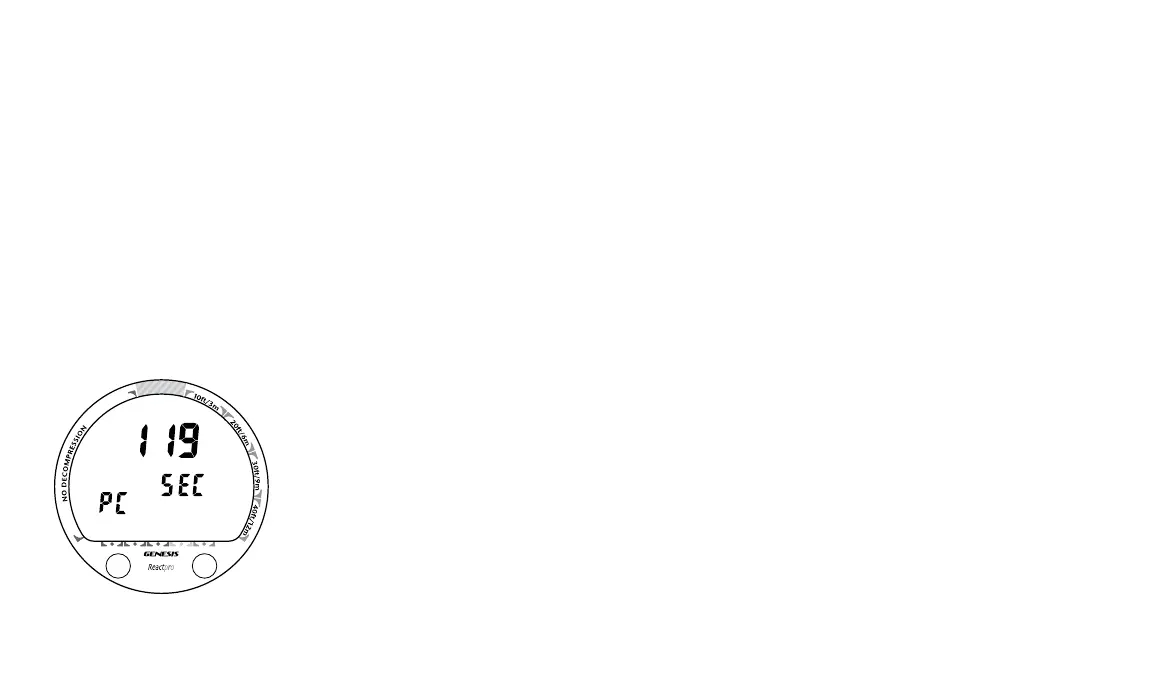

PC screen (Fig. 81)
• Graphic PC
• Countdown Timer from 119 to 00 (sec)
Data Download and/or Settings Upload action is initiated by the PC program (no buttons need to
be pressed).
If PC action is not initiated by the time the countdown timer reaches 00 (seconds), operation au-
tomatically reverts to the Surface Main screen.
Fig. 81 - PC Interface
