39
ReACT Pro
AM
A
S
NITROXNITROX
NITROX NITROX
FT
STOP
A
S

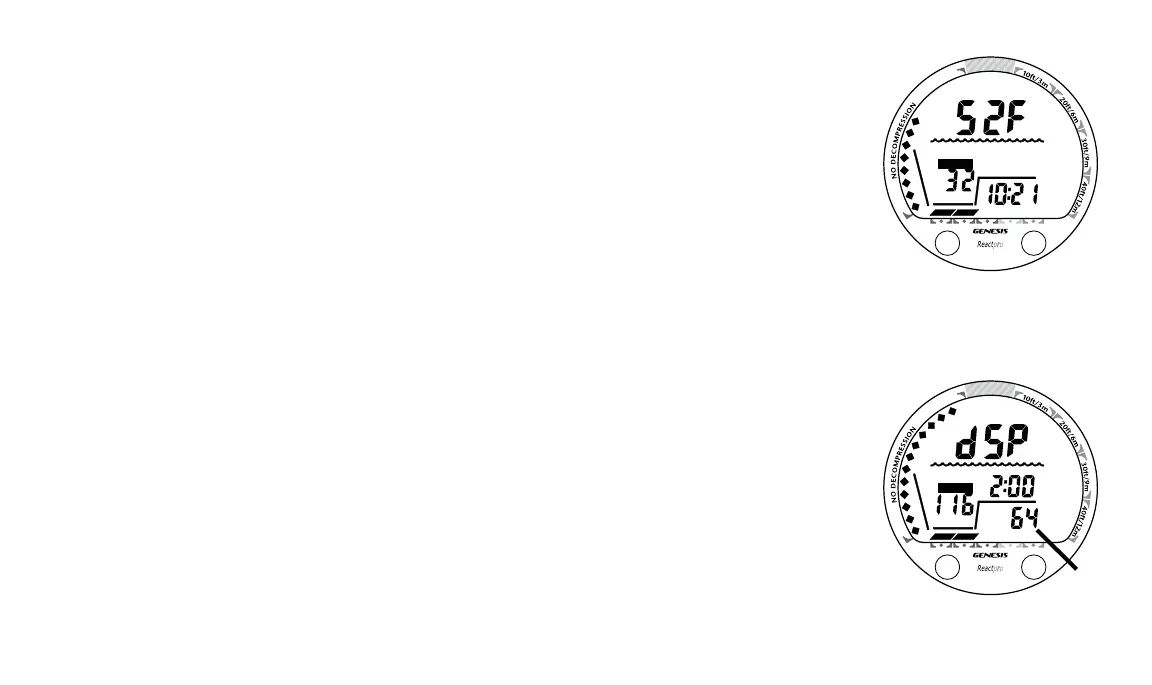

No Deco ALT 2 (Fig. 36)
Displayed will be -
• Temperature with graphic F (or C)
• AIR (or NITROX) operating mode icon with Wave/Profile icons
• FO2 (% set), if set for Nitrox (blank if set for Air)
• Time of Day (hr:min) with AM (or PM) icon, no icon if set for 24 Hour Format
• Bar Graphs indicating nitrogen loading and ascent rate
> operation will revert to the Main after 5 seconds or if the A button is pressed
> press/release the S (right) button to activate the backlight for 10 seconds
NO DECO DEEP STOP (DS)
During No Deco dives in which Depth exceeds 80 FT (24 M), a Deep Stop Preview screen can be
accessed (if set On) that will revert to the No Deco Main after 5 seconds.
> The intent of this screen is to suggest that a Stop should be made as indicated (at 1/2 Max
Depth) to help reduce the probability of DCS (decompression sickness).
> The Preview screen will not be available for display once you ascend 10 FT (3 M) above
the calculated Stop Depth.
> To access the Preview screen while viewing the No Deco Main screen, depress the A (left)
button for 2 seconds. Information displayed includes (Fig. 37) -
• Graphic dSP (meaning Deep Stop Preview)
• AIR (or NITROX) operating mode icon with Wave/Profile icons
• Current Depth with FT (or M) icon
• Stop Time 2:00 (min:sec) with STOP icon and Stop Depth (Fig. 37a, with no icon)
Fig. 36 - No Deco ALT 2
Fig. 37 - DS Preview
a
