DIGITAL GAUGE MODE
When Digital Gauge Mode is set On, the unit operates without any decompression or O2 monitor-
ing functions, basically as a Depth Gauge/Timer. A contiguous 24 hour post dive surface interval
is then required for the unit to operate as a full function diving computer.
GAUGE DIVE MAIN (Default)
Information displayed includes (Fig. 40)-
• Bottom Time (hr:min) with BT icon
• Wave/Profile (dive mode) icons
• Graphic GAU
• Current Depth with FT (or M) icon
• ARI while ascending
> Pressing/releasing the S button activates the Backlight.
> Pressing/releasing the A button accesses the ALT Display.
GAUGE DIVE ALT
Information displayed includes (Fig. 40A)-
• Temperature with graphic F (or C)
• Wave/Profile (dive mode) icons
• Graphic GAU
• Max Depth with MAX and FT (or M) icons
• Time of Day (hr:min) with AM (or PM) icon, no icon if set for 24 Hour Format
> Pressing/releasing the A button reverts to the Main.
• Operation reverts to the Main after 5 seconds if A is not pressed.

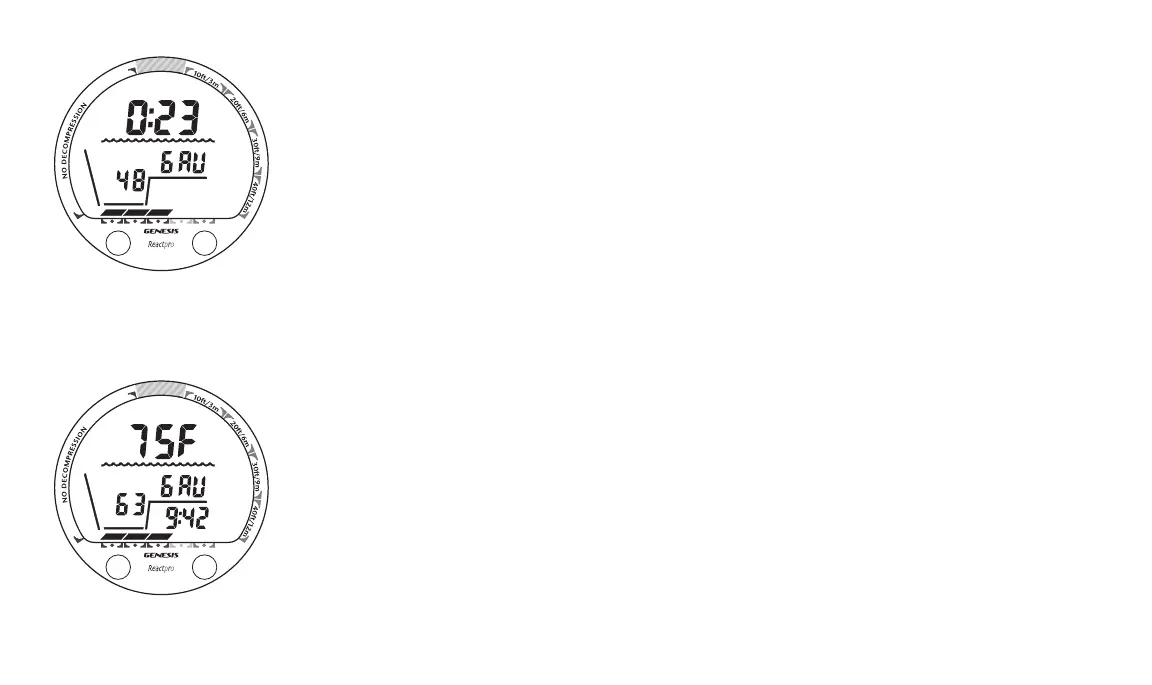

Fig. 40 - Gauge Dive Main
Fig. 40A - Gauge Dive ALT
