54
TAT
FT
STOP
D
E
C
O
O
C
D
E
O
D
E
C
A
S
O
D
E
C
NITROXNITROX
When DV1 activates, you would then need to follow the Stop Depths and Times toward the sur-
face until the NiBG recedes into the No Deco Caution Zone.
DELAYED VIOLATION 2 (DV2)
If your Decompression requires a Stop Depth between 60 FT (18 M) and 70 FT (21 M), Total As-
cent Time (TAT), Stop Bar, Up Arrow, and STOP icons, full NiBG, and graphic 60 (or 18) will
flash (Fig. 56) until you descend below the required Stop Depth. One beep per second will sound.
You must ascend to just deeper than 60 FT (18 M), staying as close to 60 FT (18 M) as possible
without causing TAT to flash. When the required Stop Depth indicates 50 FT (15 M), etc., you
can ascend to those depths and continue decompressing.
The ReACT Pro cannot accurately calculate Deco times for Stop Depths much greater than 60 FT
(18 M) and offers no indication of how much time spent underwater would result in the need for a
greater Stop depth.
DELAYED VIOLATION 3 (DV3)
If you exceed the MOD (Max Operating Depth) of 330 FT (99.5 M), or 399 FT (120 M) when op-
erating in Digital Gauge Mode, Dive Time Remaining and Current Depth will both display 3
dashes flashing as a warning (Fig. 57). One Beep per second will sound and the Up Arrow icon
will be displayed flashing.
Max Depth, O2SAT, and PO2 displays on ALT screens will also only indicate dashes until ascent
is made to a depth shallower than the MOD.

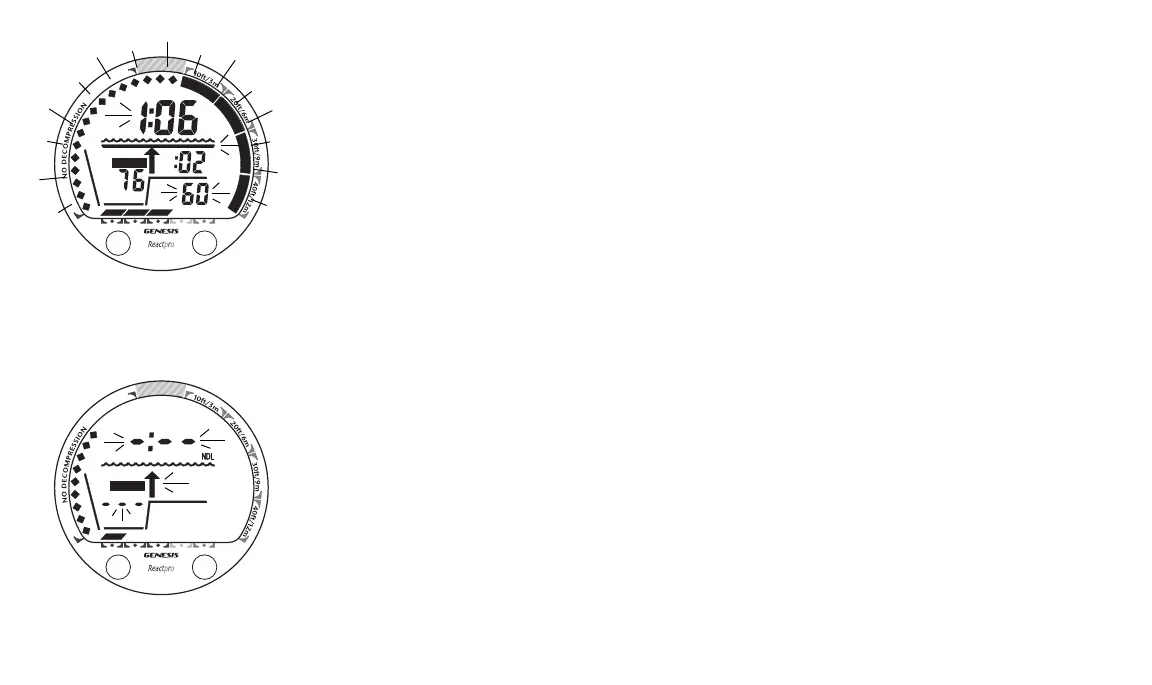

Fig. 56 - DV2 Main
FT
A
S
NITROXNITROX
Fig. 57 - DV3 Main
