Genesis React Pro - No Deco Displays

38
BT
BT
MAX
MAX
FT
FT
PO2
PO2
SAT
SAT
2
2
O
O
A
S
NITROXNITROX
NITROX

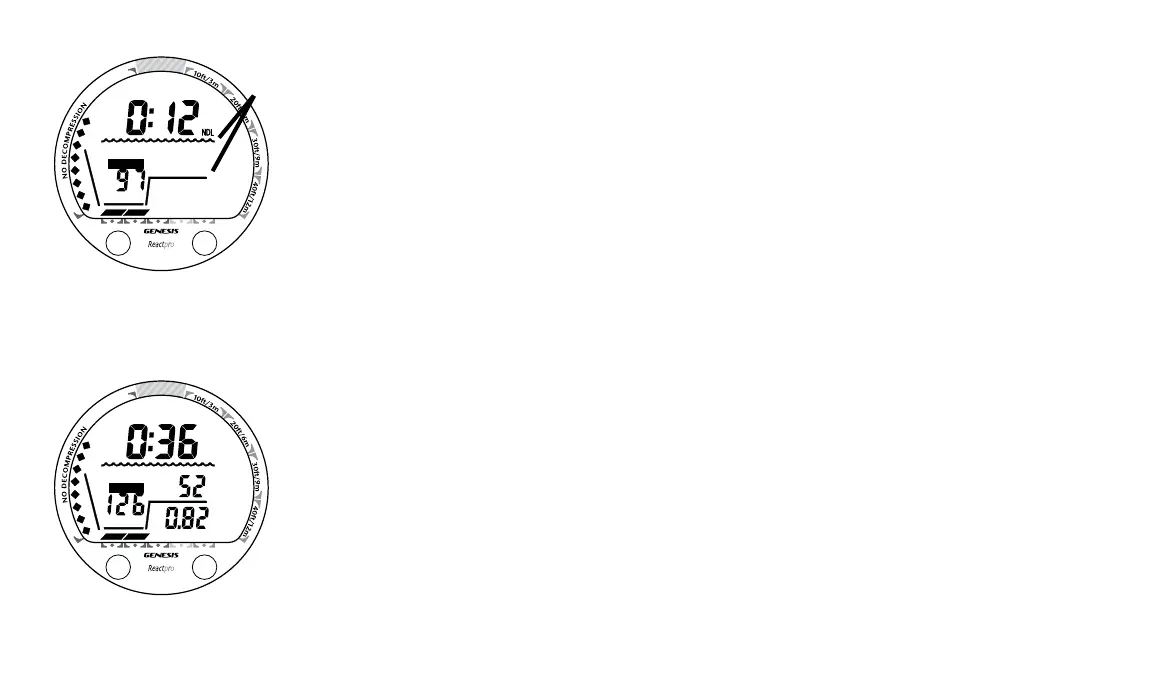

NO DECO DIVE MAIN (Fig. 34)
The ReACT Pro will enter the No Deco Dive Mode when you descend to 5 FT (1.5 M) for 5 sec-
onds. Dive mode is identified by the Wave and Dive Profile icons (Fig. 34a). Also displayed will
be -
• Dive Time Remaining (hr:min) with NDL (or OTL) icon
• AIR (or NITROX) operating mode icon with Wave/Profile icons
• Current Depth with FT (or M) icon
• Bar Graphs indicating nitrogen loading and ascent rate
> press/release the A (left) button to access the ALT 1 screen
> depress the A (left) button for 2 seconds to access the DS Preview screen, if triggered
> press/release the S (right) button to activate the backlight for 10 seconds
No Deco ALT 1 (Fig. 35)
Displayed will be -
• Bottom Time (hr:min) with BT icon
• AIR (or NITROX) operating mode icon with Wave/Profile icons
• Max Depth with MAX and FT (or M) icons
• O2 (xx %) accumulated with O2SAT icon, if set for Nitrox (blank if set for Air)
• PO2 (x.xx ATA) with PO2 icon, if set for Nitrox (blank if set for Air)
• Bar Graphs indicating nitrogen loading and ascent rate
> operation will revert to the Main after 5 seconds unless the A button is pressed
> pressing/releasing the A (left) button will access the ALT 2 screen
> pressing/releasing the S (right) button will activate the backlight for 10 seconds
Fig. 35 - No Deco ALT 1
FT
FT
A
S
NITROXNITROX
NITROX
Fig. 34 - No Deco Dive
a
