Bullet Camera (Part I)
69
8
Second Shaft

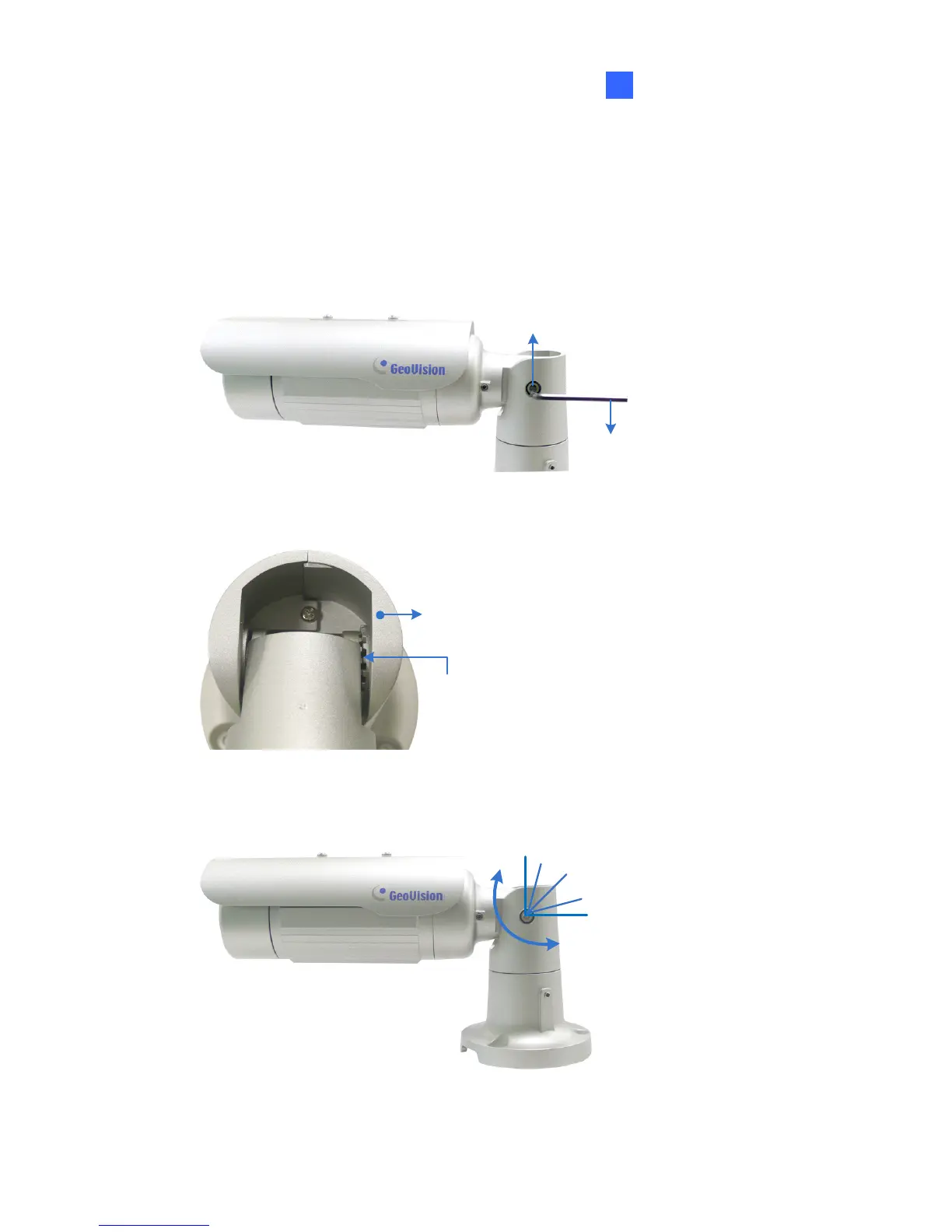

You can adjust the camera body up and down by 90, 112.5, 135, 157.5 or
180 degrees by using the gears inside the camera body and the camera
base.
1. Unscrew the tilting lock screw with the torx wrench.
Torx Wrench
Tilting Lock Screw
2. Hold the camera body, and move the camera base to the right to
separate the camera gears.
Camera Body
Camera Gears
Move the Camera
Base to the Right
3. Adjust the angle of camera body to 90, 112.5, 135, 157.5 or 180
degrees. Then move the camera base to the left to combine the gears.
90°
112.5°
180
°
157.5°
135°
4. Fasten the tilting lock screw.
