GeoVision GV-IPCamera Series User Manual

Vandal Proof IP Dome (Part I)
145
14
14.4.2 Connecting the Power Cable
There are two ways to supply power to the camera:
 Use a Power over Ethernet (PoE) adapter to connect the camera to
the network, and the power will be provided at the same time.

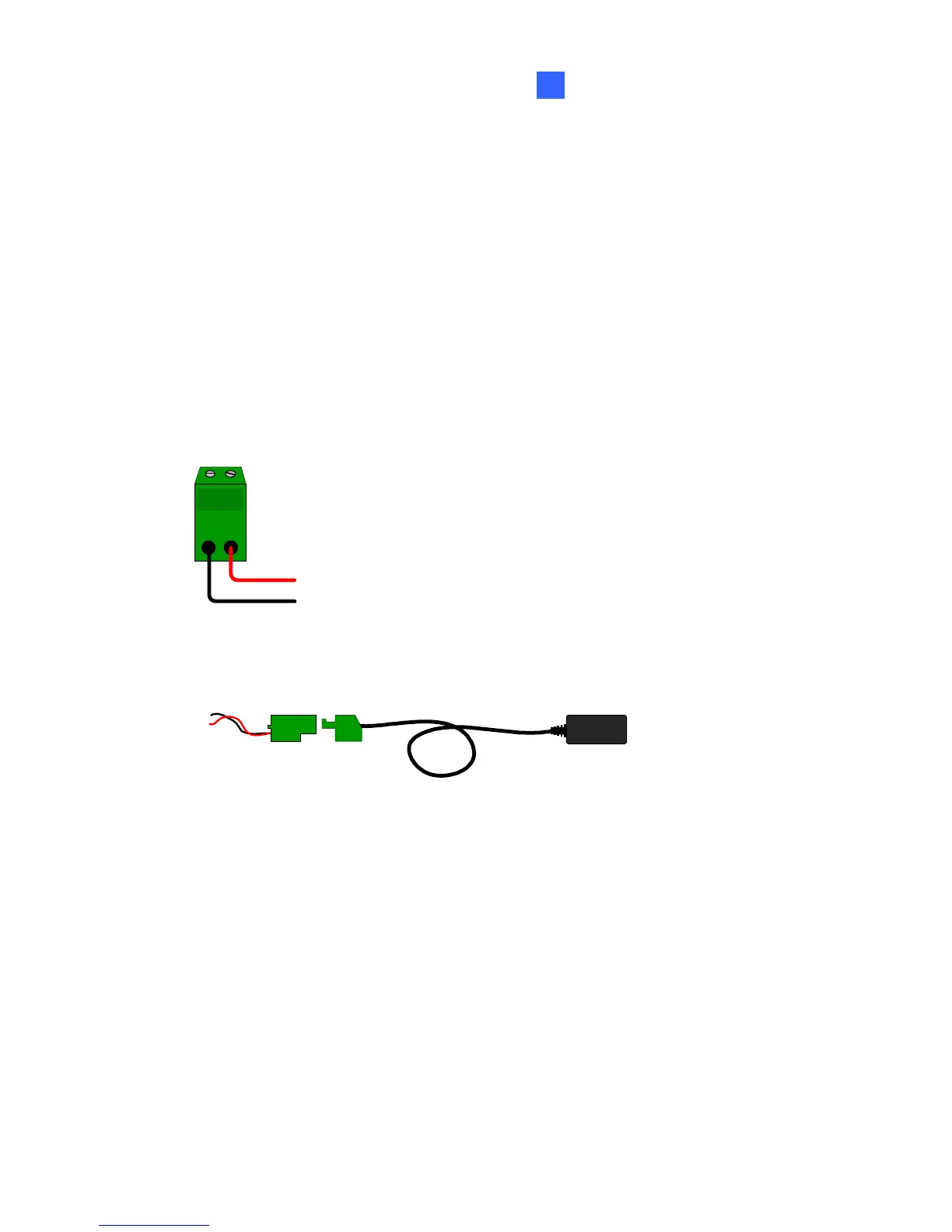

 Plug the power adaptor to the terminal block as shown below.
1. Insert the thin black wire of the Vandal Proof IP Dome to the left pin (-)
and the red wire to the right pin (+).
2. Connect the DC 12V Power Adapter to the Terminal Block.
DC 12V Power Adaptor
Terminal Block
