172

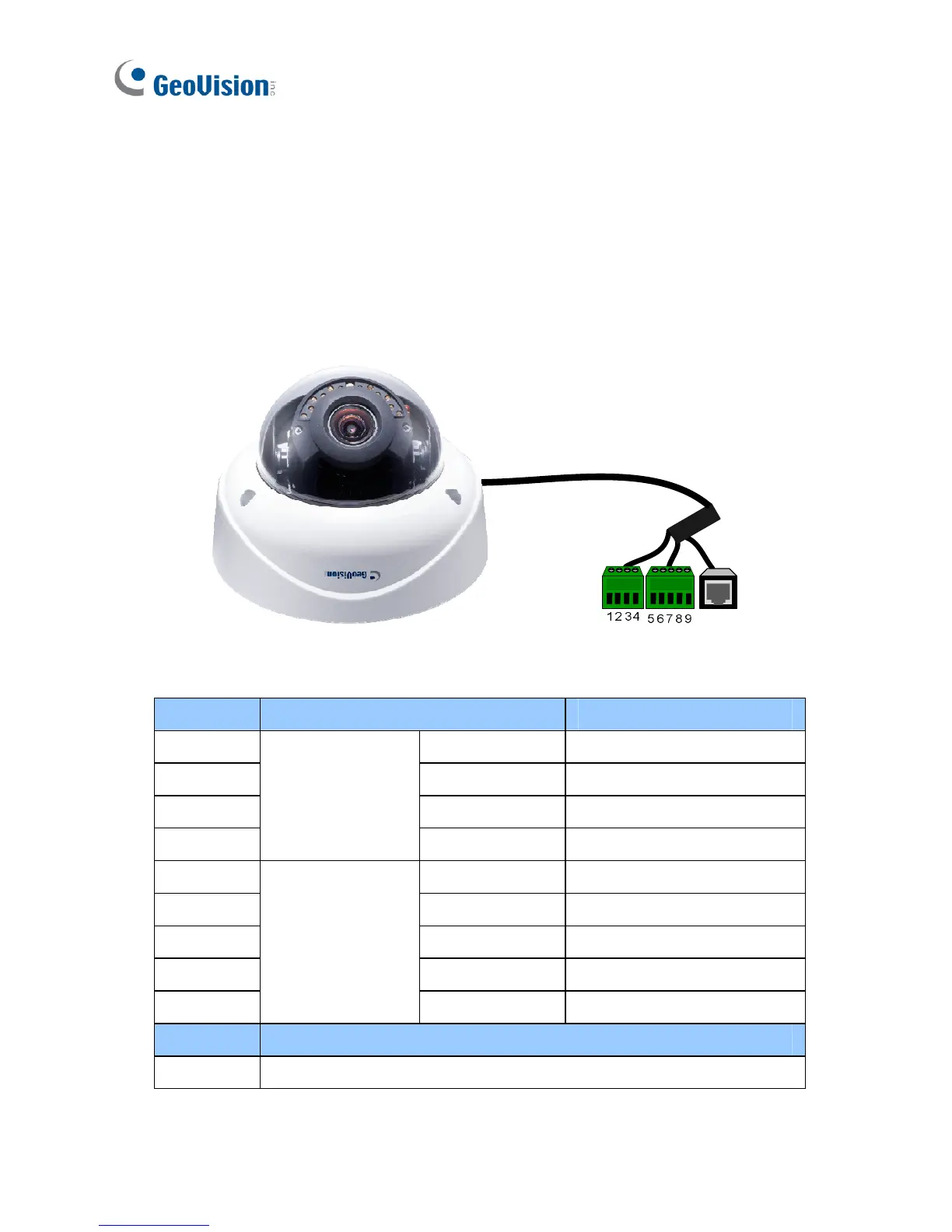

16.4 Connecting the Camera
Connect your Vandal Proof IP Dome to power, network and other cables
needed.
16.4.1 Definition
Pin Wire Name Definition
1 DI + Digital out +
2 DI - Digital out -
3 DO + Digital in +
4
4-Pin terminal
block
DO - Digital in -
5 L – Out Audio out
6 A GND Audio ground
7 L – IN Audio in
8 GND DC 12 V +
9
5-Pin terminal
block
12 V DC 12 V -
Wire Definition
RJ-45 Ethernet or PoE
