Fixed IP Dome
201
18

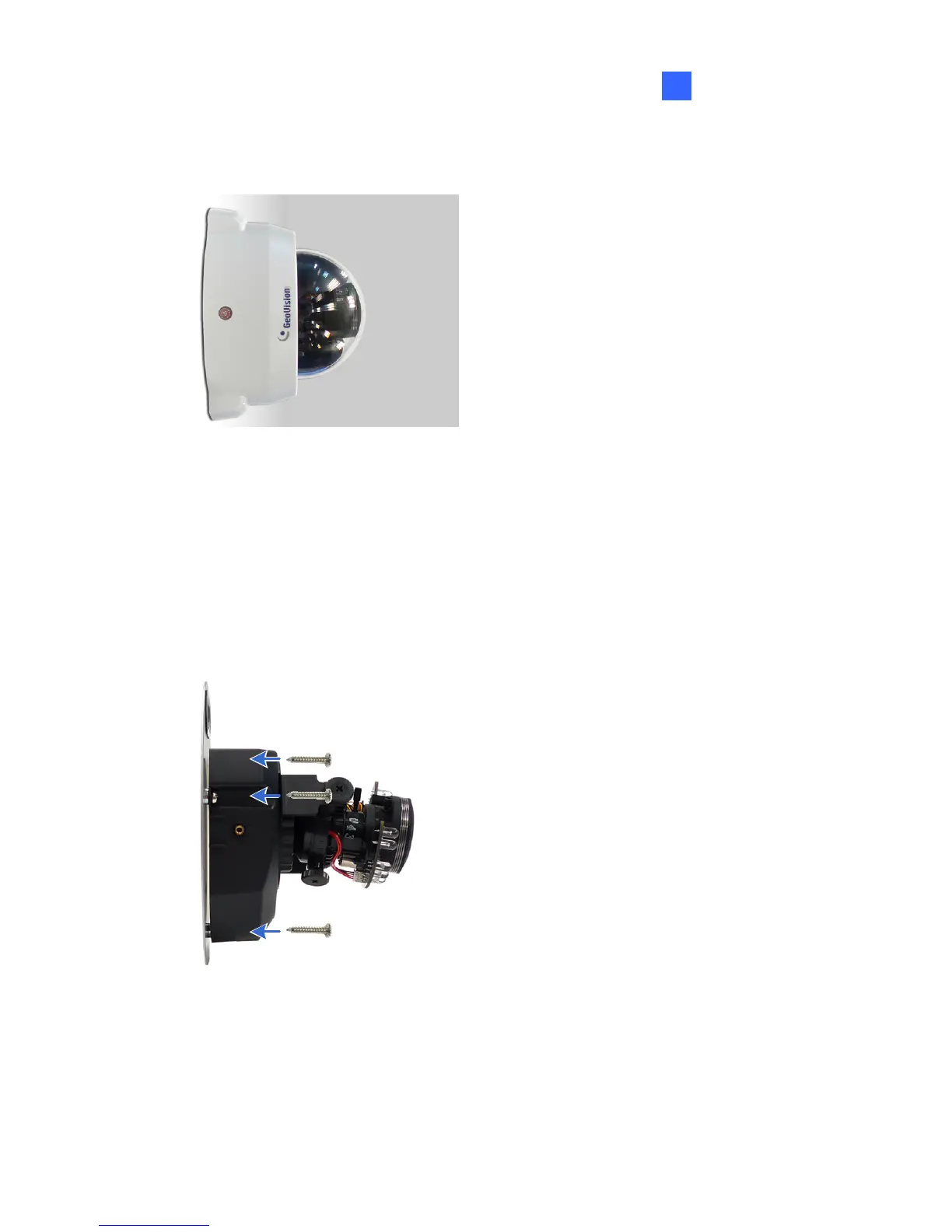

18.3.3 Wall-Surface Mount
1. Follow step 2 in the Hard-Ceiling Mount section to remove the housing
cover and take out the camera body.
2. Paste the supplied sticker onto a desired location on the wall. Drill the
three red dots, and the ellipse mark only if you wish to run the wires
into the wall.
3. Insert the short screw anchors and secure the camera and the
mounting plate with three plate screws.
4. Connect the network and power cables to the camera. See 18.4
Connecting the Camera in the Quick Start Guide.
5. Access the live view. See 24.2 Accessing the Live View in the Quick
Start Guide.
