132

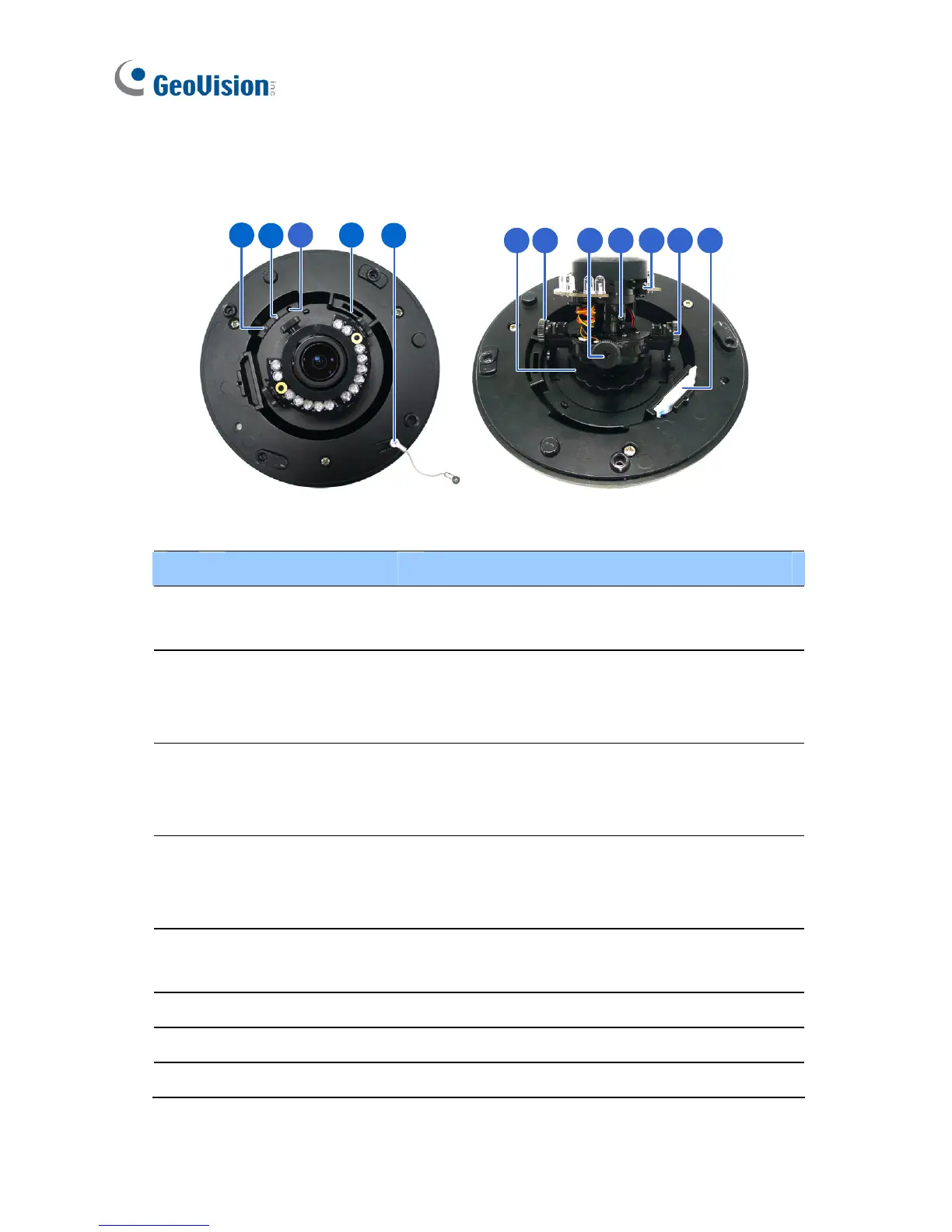

14.2 Overview
2
3 4
5
1
6 7 8 9 7
10 11
No. Name Description
1 Power LED
Turns on (green) when the power is on and
turns off when there is no power supply.
2 Status LED
Turns on (green) when the system
operates normally and turns off when
system error occurs.
3 Default Button
Resets the camera to default settings. See
27. Restoring to Default Settings in the
Quick Start Guide.
4 Memory Card Slot
Receives a micro SD card (SD/SDHC,
version 2.0 only, Class 10) to store
recording data.
5 Thread Lock
Locks the housing cover to the camera
body to prevent the cover from falling.
6 Pan Disc Loosens to pan the camera.
7 Tilt Screw Loosen the screw to tilt the camera.
8 Rotational Screw Loosens to adjust the camera angle.
To Next Page
