Bullet Camera (Part III)
99
1
0

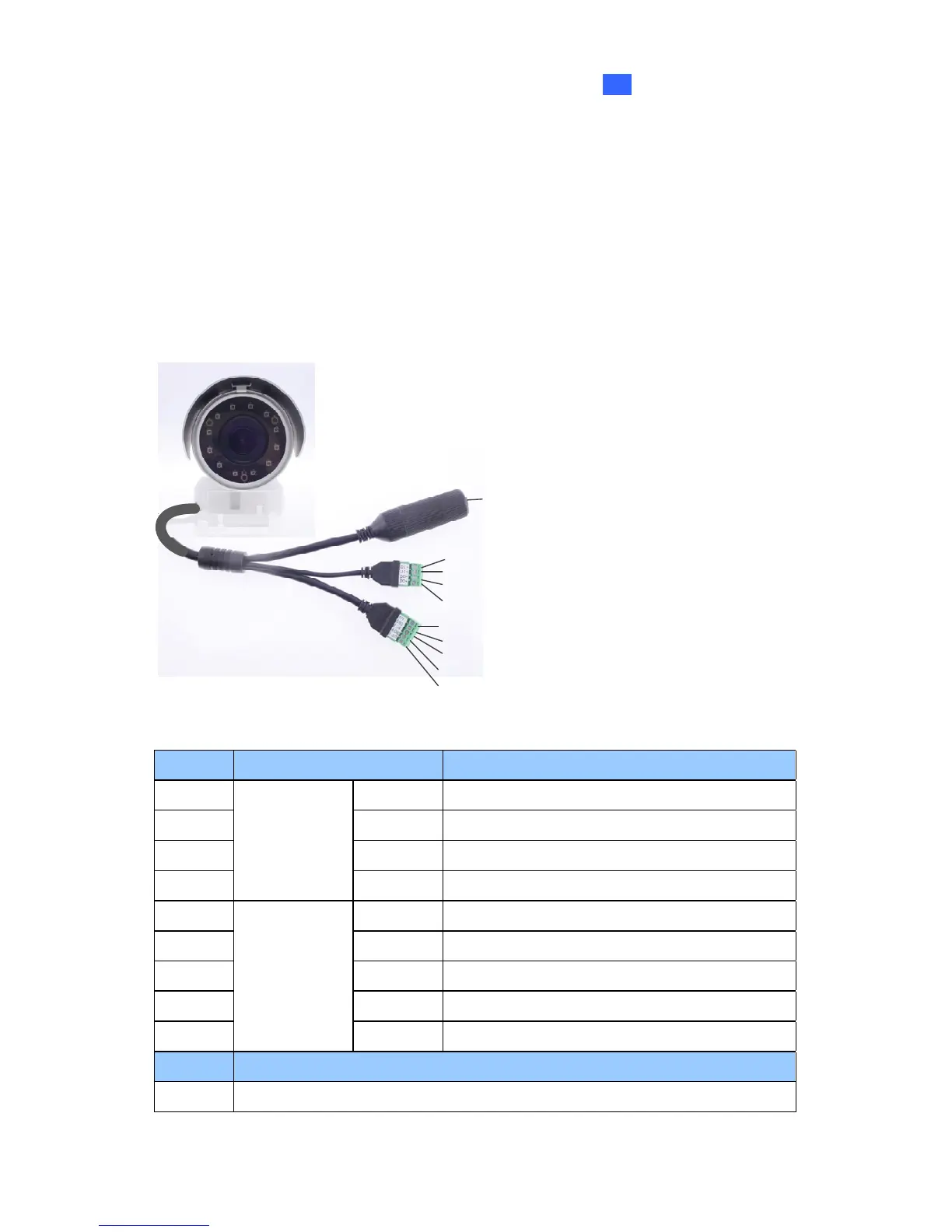

10.4 Connecting the Camera
10.4.1 Wire Definition
The 4-Pin terminal block provides connections for 1 sensor input and 1
sensor output. The 5-Pin terminal block provides power input, 1 audio
input and 1 audio output. The wires are illustrated and defined below:
Ethernet (PoE)
4-Pin terminal block
5-Pin terminal block
1
2
3
4
5
6
7
8
9
No. Wire Name Definition
1. DI - Digital In -
2. DI + Digital in +
3. DO - Digital Out -
4.
4-pin
terminal
block
DO+ Digital Out +
5. 12V 12 V -
6. GND DC 12V +
7. L-IN Audio in
8. A GND Audio Ground
9.
5-pin
terminal
block
L-OUT Audio out
Wire Definition
RJ-45 Ethernet / PoE (IEEE 802.3af)
