GeoVision GV-IPCamera Series User Manual

76

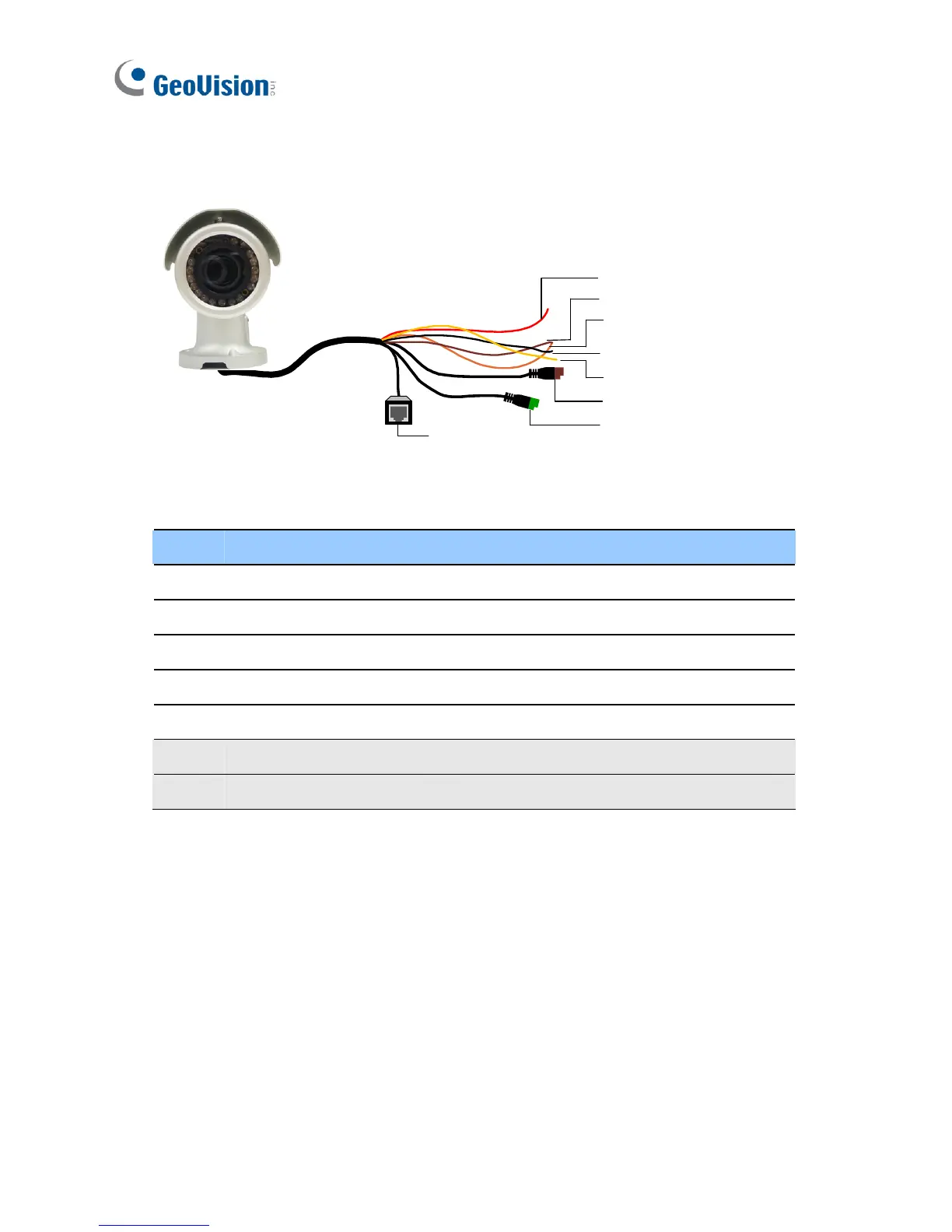

Note that the Audio In and Out connectors may also come as terminal
blocks:
Ethernet (PoE)
Digital In (Red)
DC 12V+ / AC 24V + (Brown)
Digital Out (Orange)
DC 12V- / AC 24V - (Black)
GND (Yellow)
Audio In (Brown)
Audio Out (Green)
No. Wire Color Definition
1 Red Digital In
2 Brown DC 12V+ / AC 24V+
3 Orange Digital Out
4 Black DC 12V- / AC 24V-
5 Yellow Ground
6 Brown terminal block Audio in
7 Green terminal block Audio out
