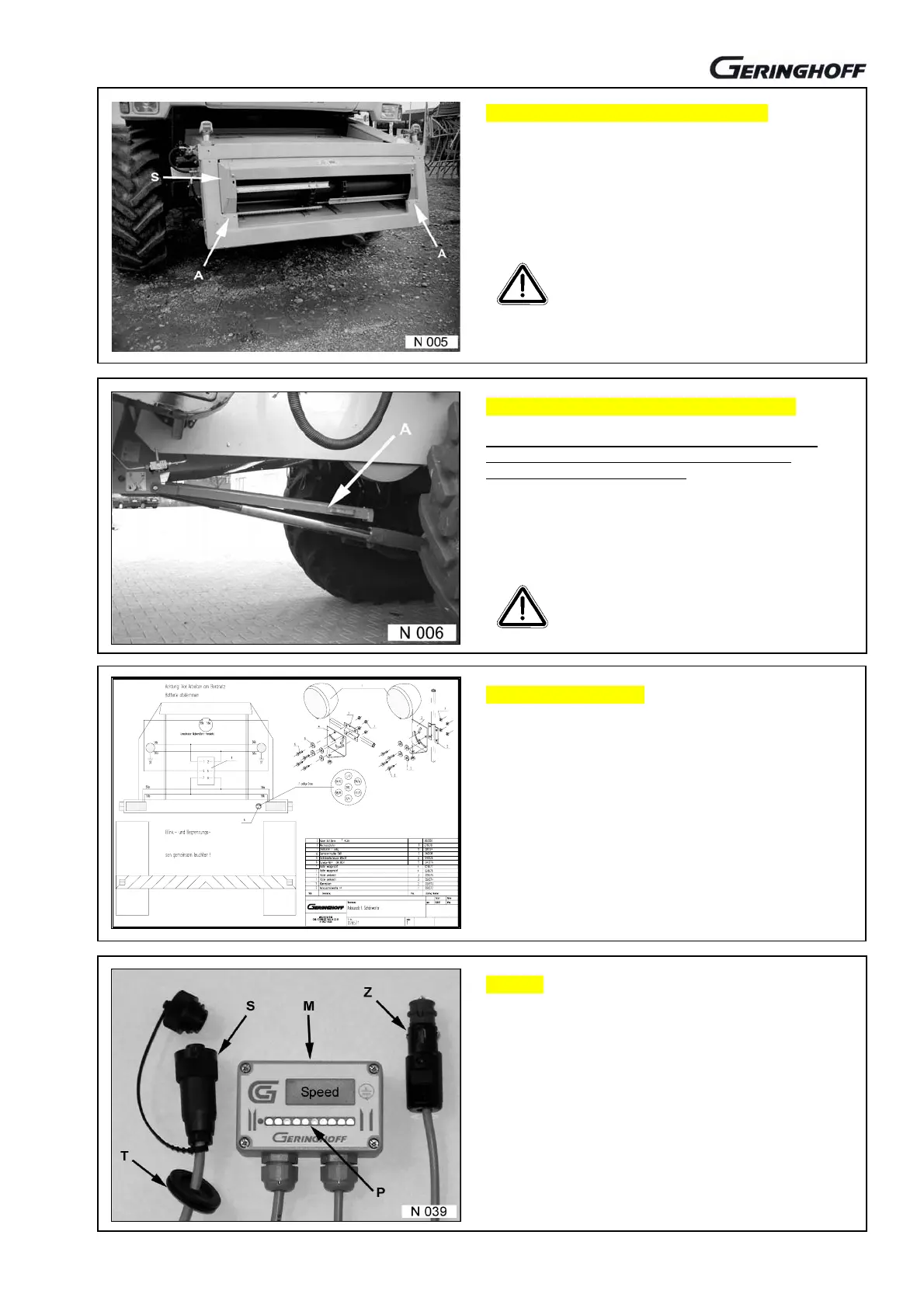

Assembly preparations on the combine
09 / 080
Front protection on gathering channel
The standard front protection (S) on top of the feeding
chain and the stripping angles (A) on the gathering
channel front are to be dismounted.
The corn header itself is fitted with a special front
protection.
When working on the combine, the
Diesel motor must be turned off!
Assembly preparations gathering channel
The feeding chain, its tension and the distance to the
channel bottom is to be adjusted according to the
instructions of the manufacturer.
(See combine manual)
Prior to the first mounting of the header, the anti-lowering
device of the gathering channel to check. Never to
perform works on the header without using this device.
On all service works on the mounted
header, lowering lock to activate!
Additional headlights
Some combine models require to mount additional
headlights for the road travel, see the scope of supply of
the header.
wiring diagram is enclosed to the headlight set. A
position switch must be used for changing between
standard and additional headlights!
Instructions of the TÜV-expertise to observe!
General terminal connecting diagram on page 36 / 500
f¤r alle Md Typen
Gegr¤ndet 1880
leuchten des M╠hdreschers
und des Frontschutzes m¤s-
Monitor
Display unit (M) to mount well readable but without visual
obstruction on top of the fittings.
The 12 V current is supplied independent of the ignition
lock via the plug (Z). (fuse max. 10 Amp.).
Connecting cable (S) right below with seal (T) to lead out
of the cabin bottom. Ensure that the cable is long enough
outside the cabin.
The monitor reads both the speed of the header and the
position of the stripping plates (P) via a changing number
of diodes.
